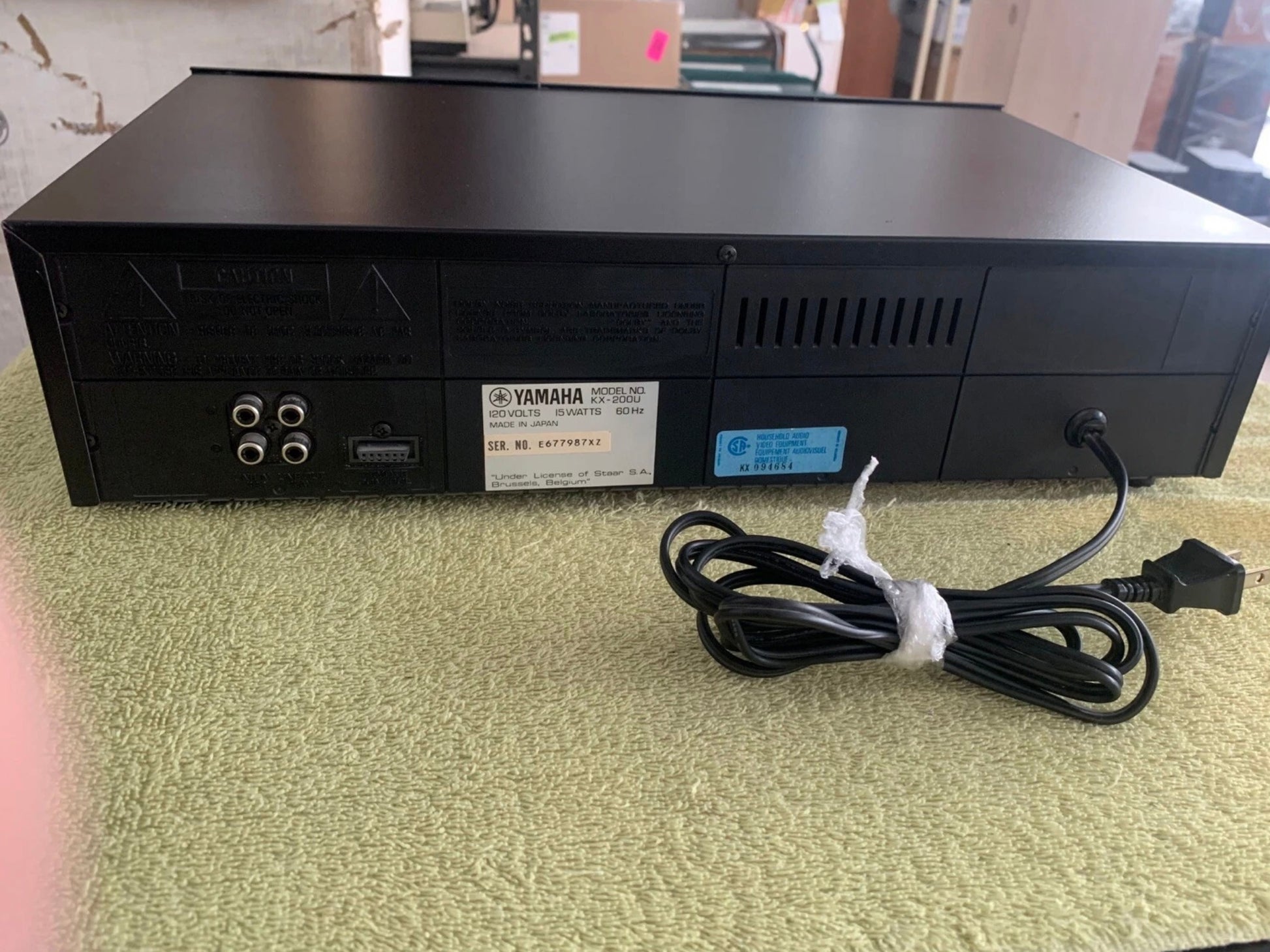

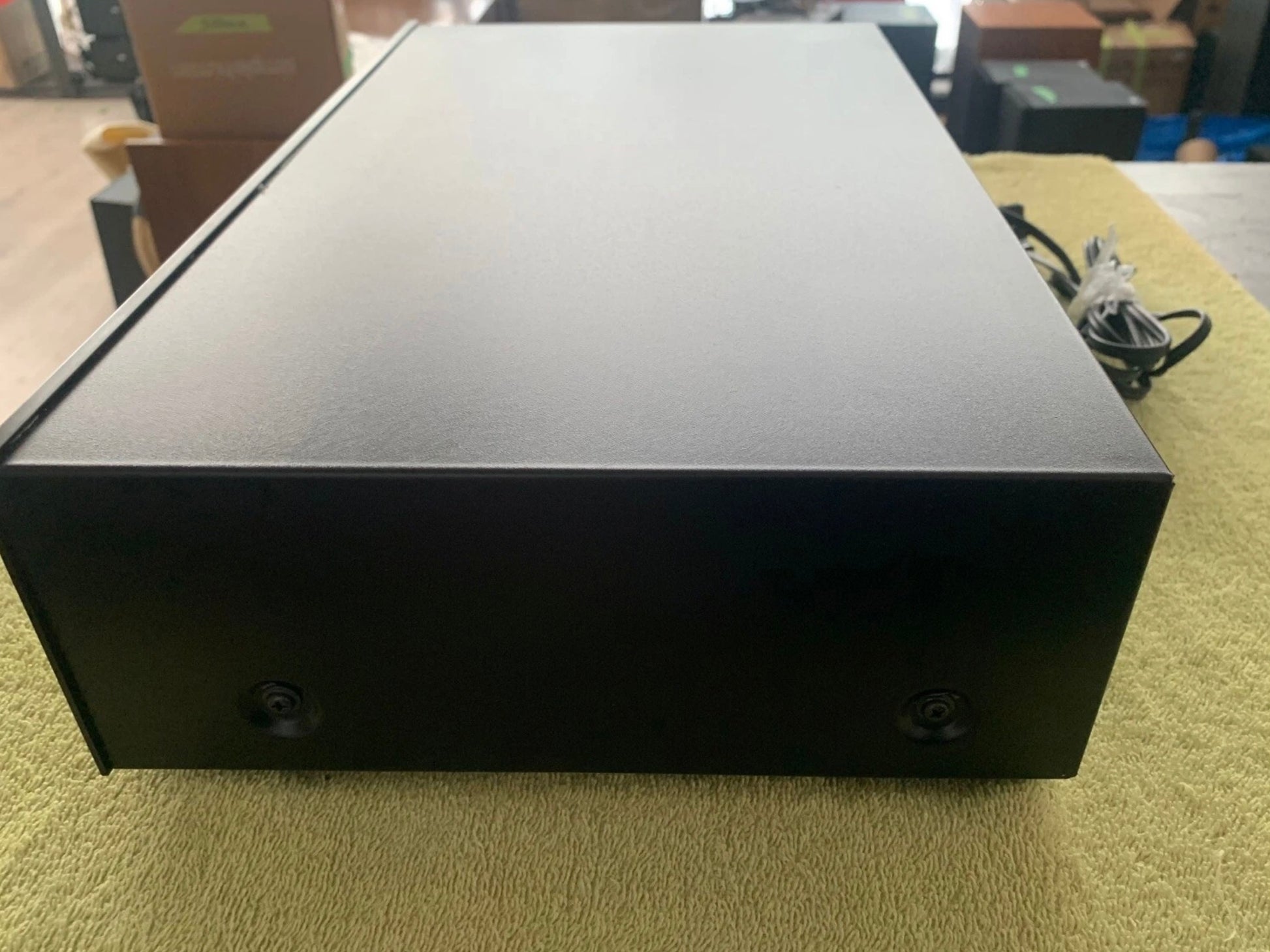

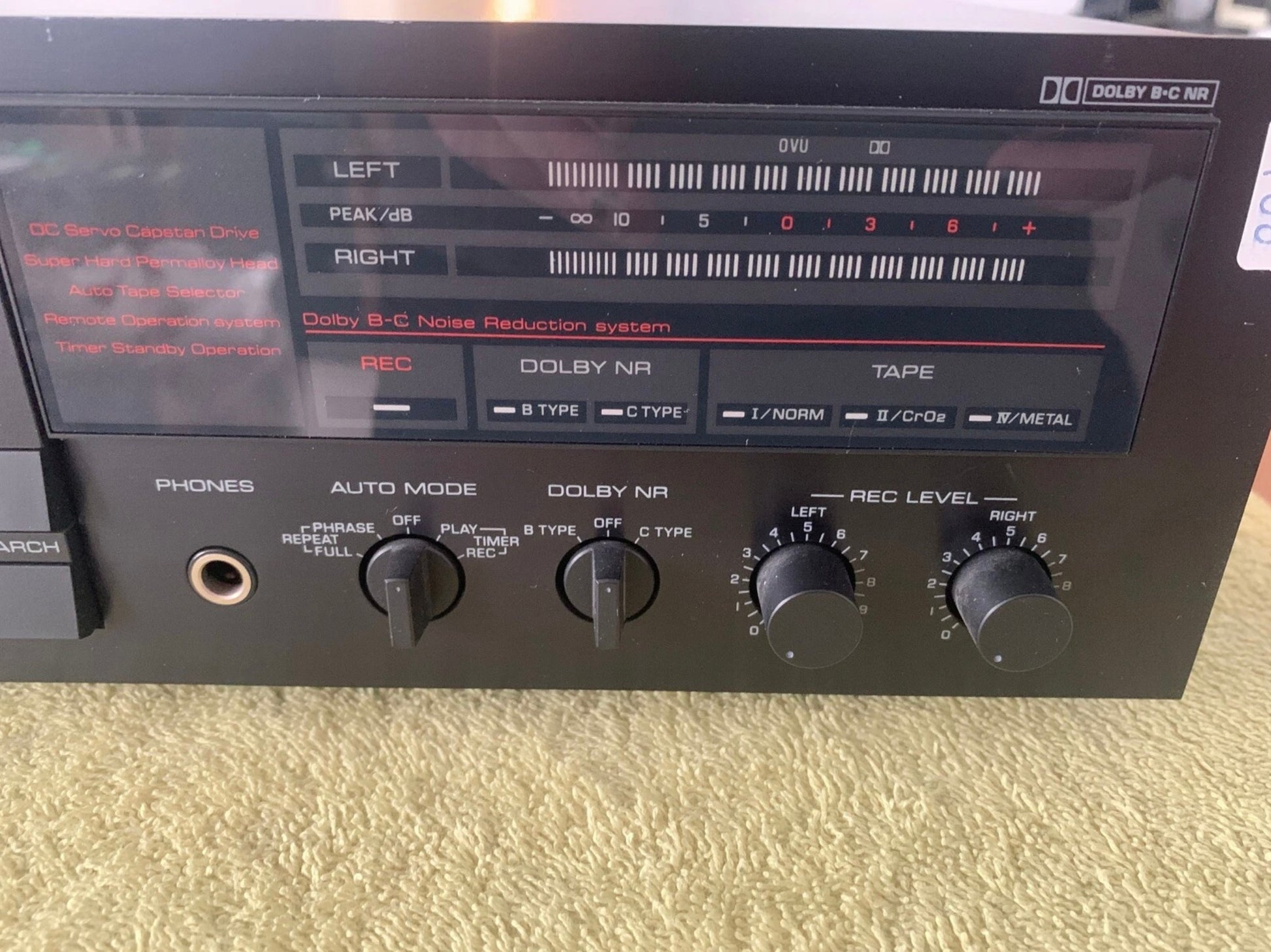

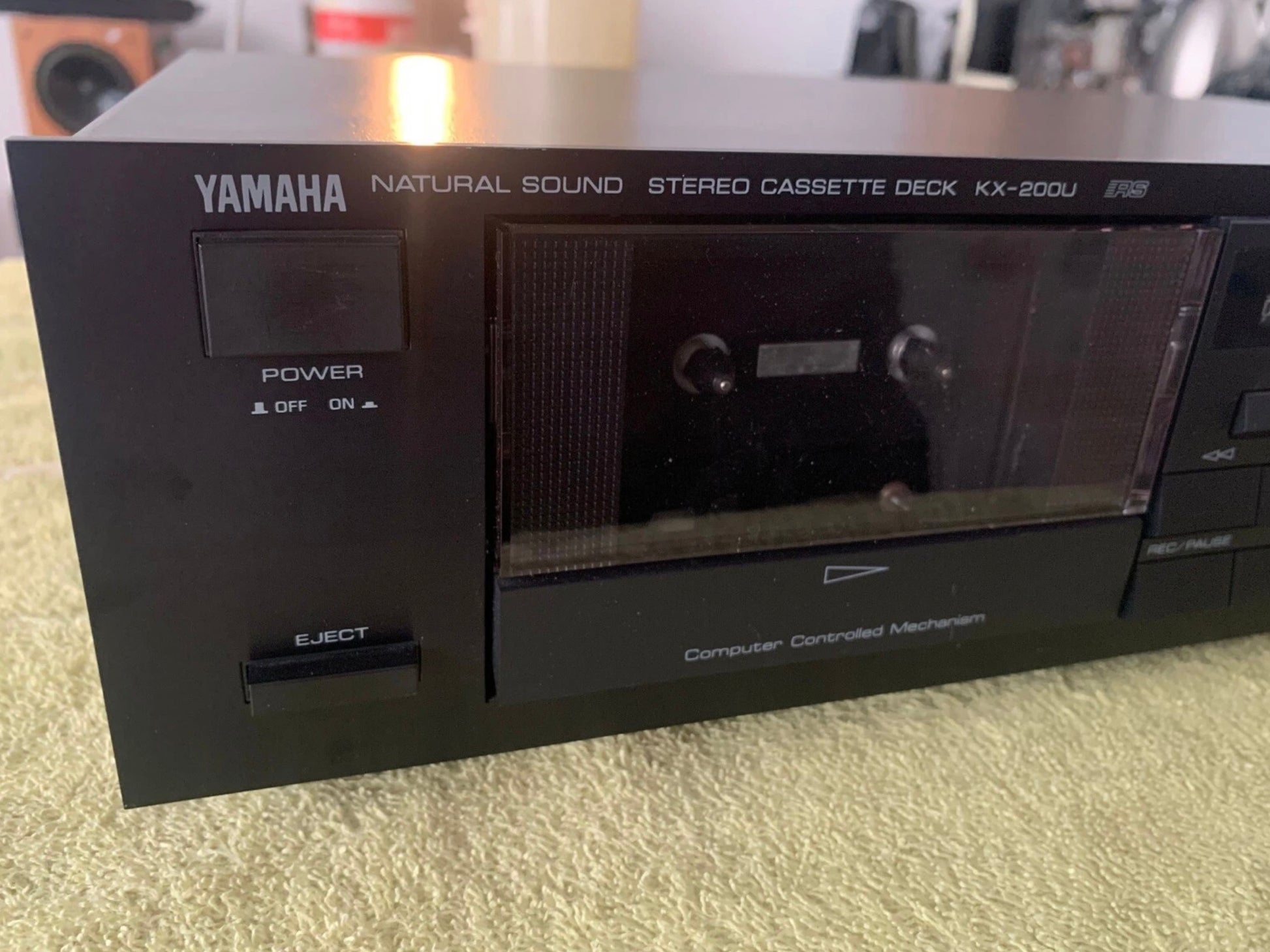

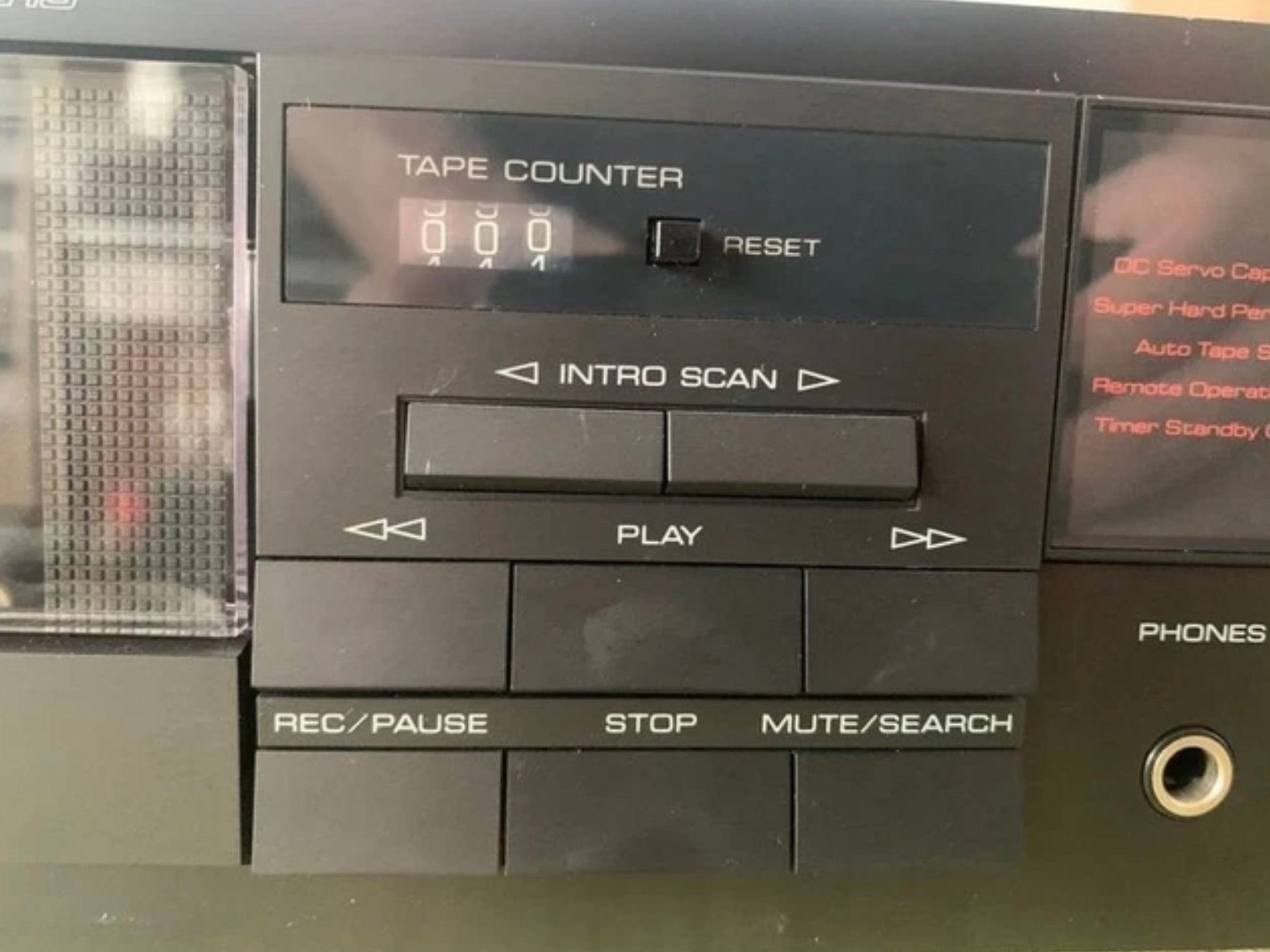

YAMAHA KX-200U tape Deck

Yamaha KX-200 U

functional

Specifications:
General

Manufacturer: Yamaha
Model: KX-200 (U)
Type: Single
Years of manufacture: 1987-1988
Made in: Japan
Colour: silver, black
Remote control: optional (RS-KW 5) and via appropriately equipped Yamaha amplifiers and receivers
Power consumption: 15 W
Dimensions: 435 mm × 112 mm × 272 mm (W × H × D)
Weight: 4.2 kg
Original price approx.: 450 DM

Connections

Number of inputs:
Line
Number of outputs:
Line
Headphones

Technical data

Sound heads: 2
Motors: 2
Synchronisation fluctuations: ±0.08 %/0.15 % WRMS/DIN
Band types: Type I, II, IV
Frequency response:
Type IV: 20-16,000 Hz ±3 dB
Distortion factor: <1 %
Signalrauschabstand: >58 dB
Auto-Reverse: no
Title search: yes
Dolby: B/C
MPX filter: no
Fader: no
Pitch control: no
CD synchro recording: no
