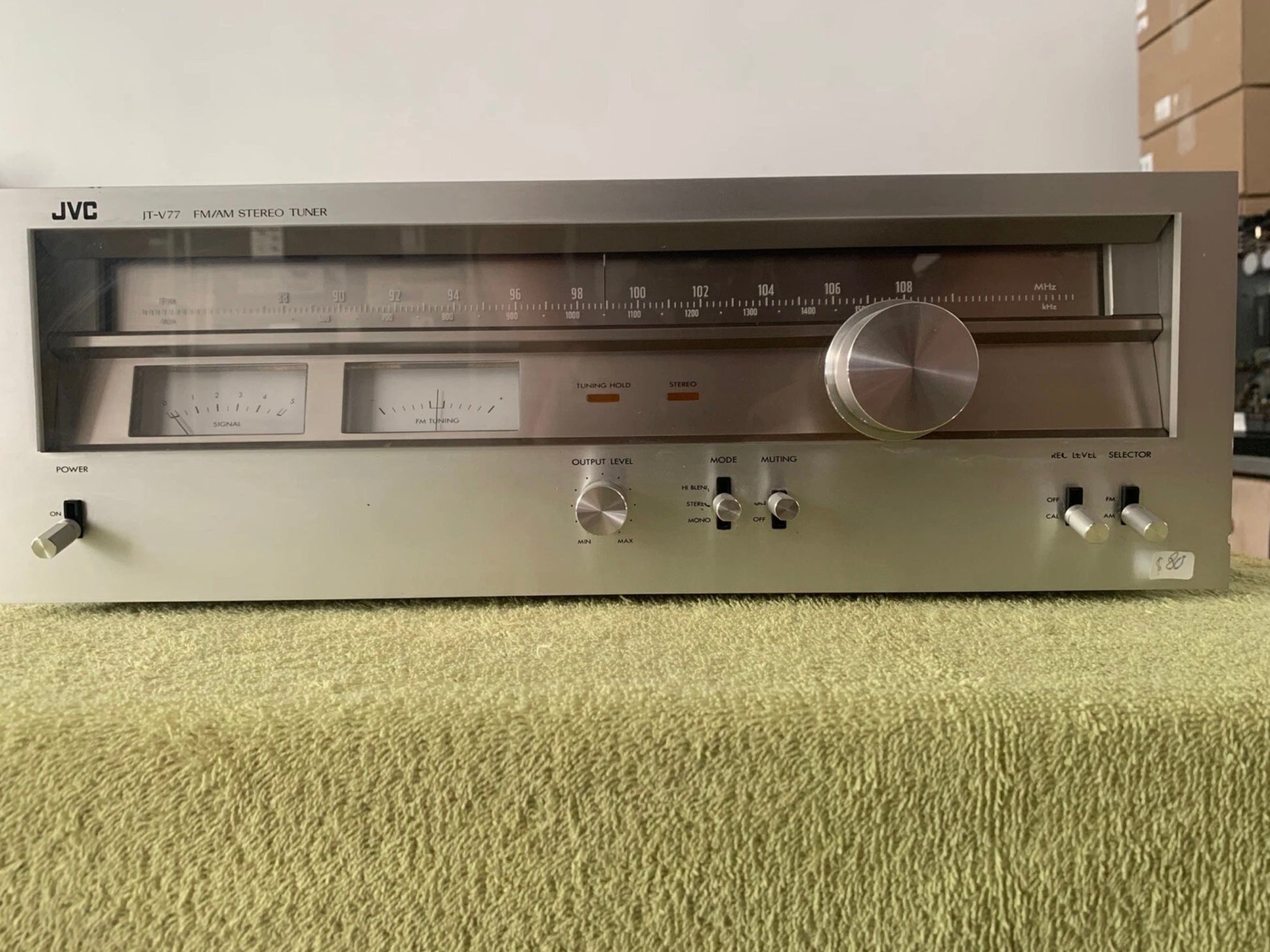

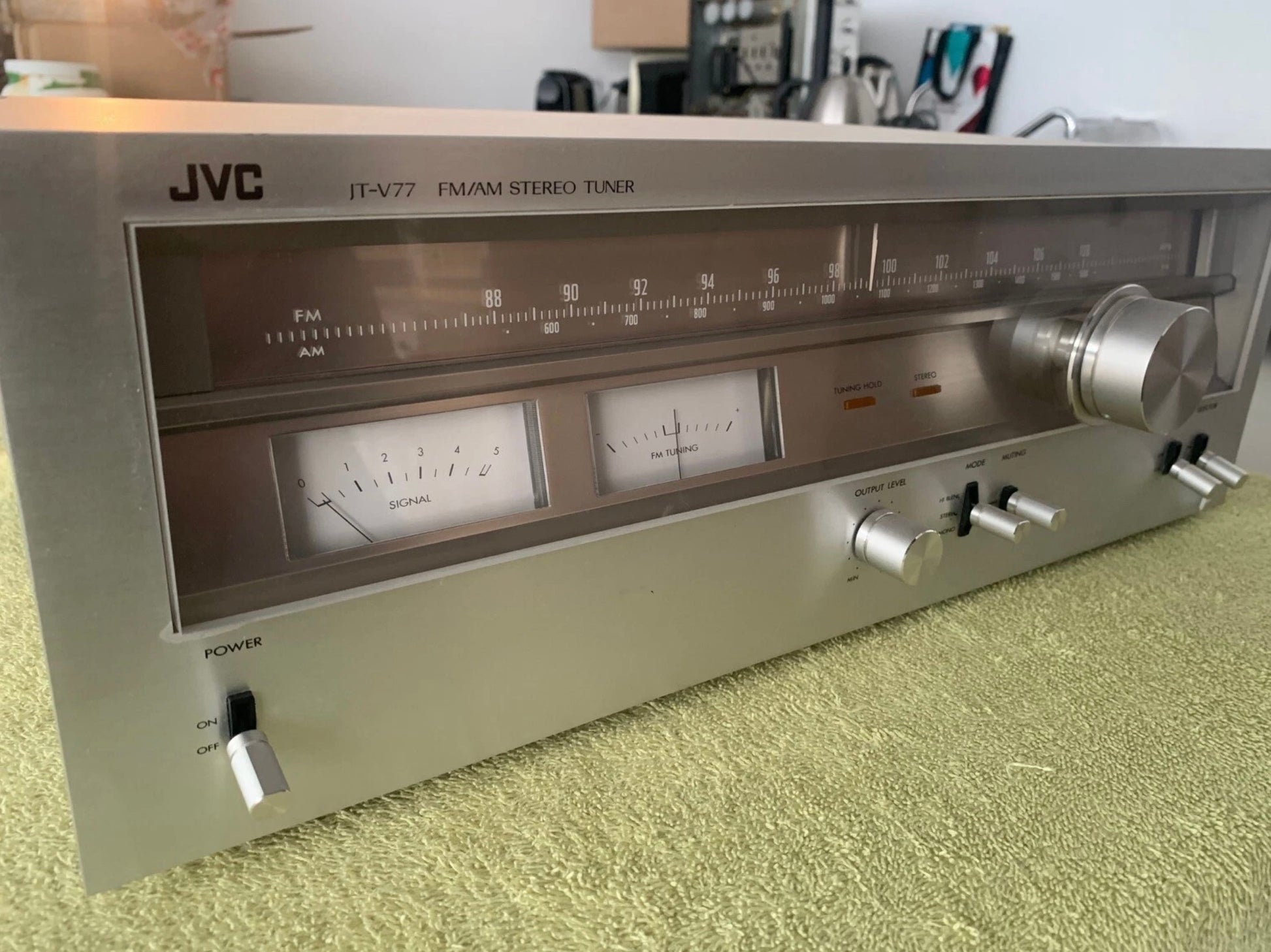

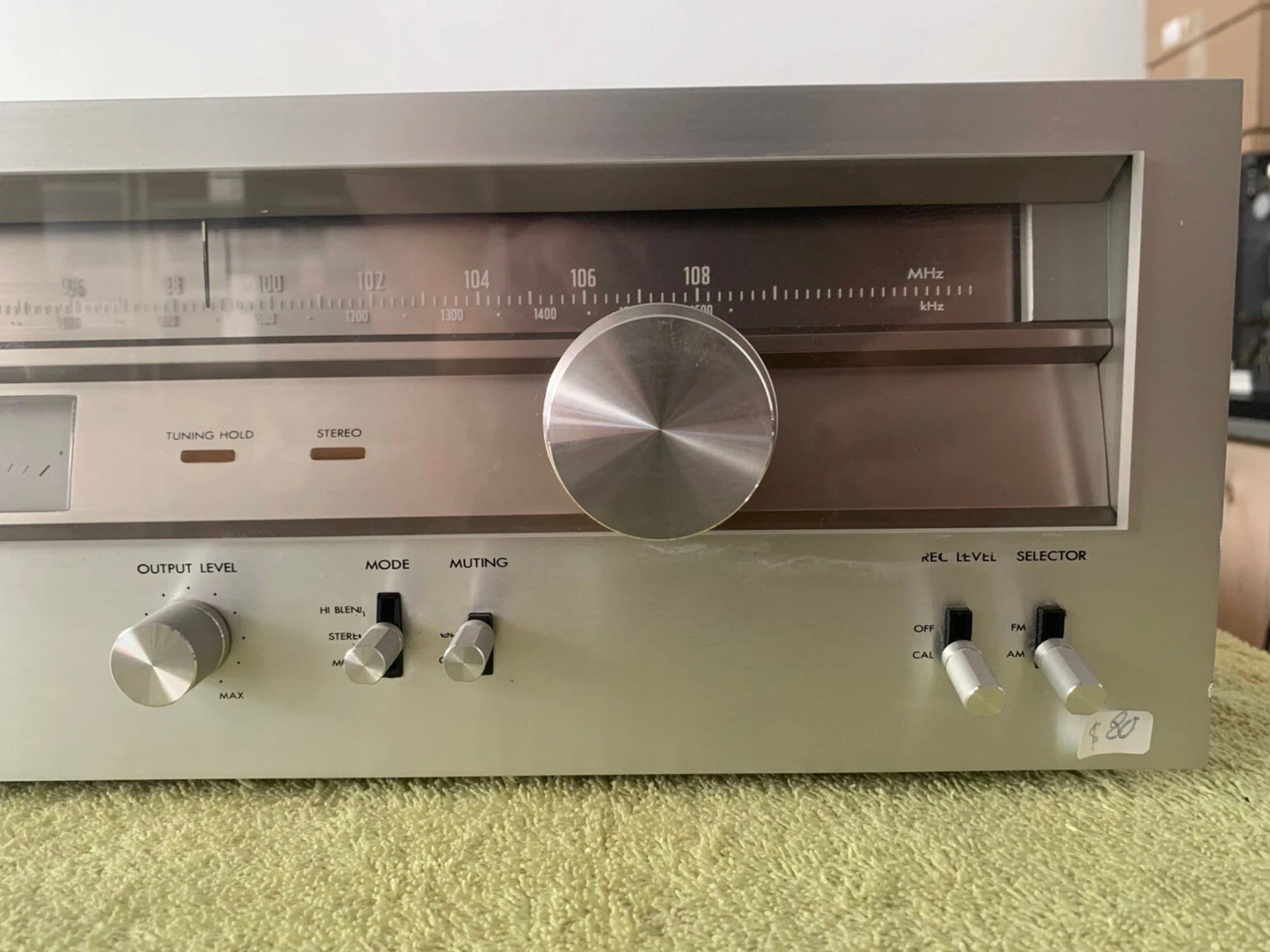

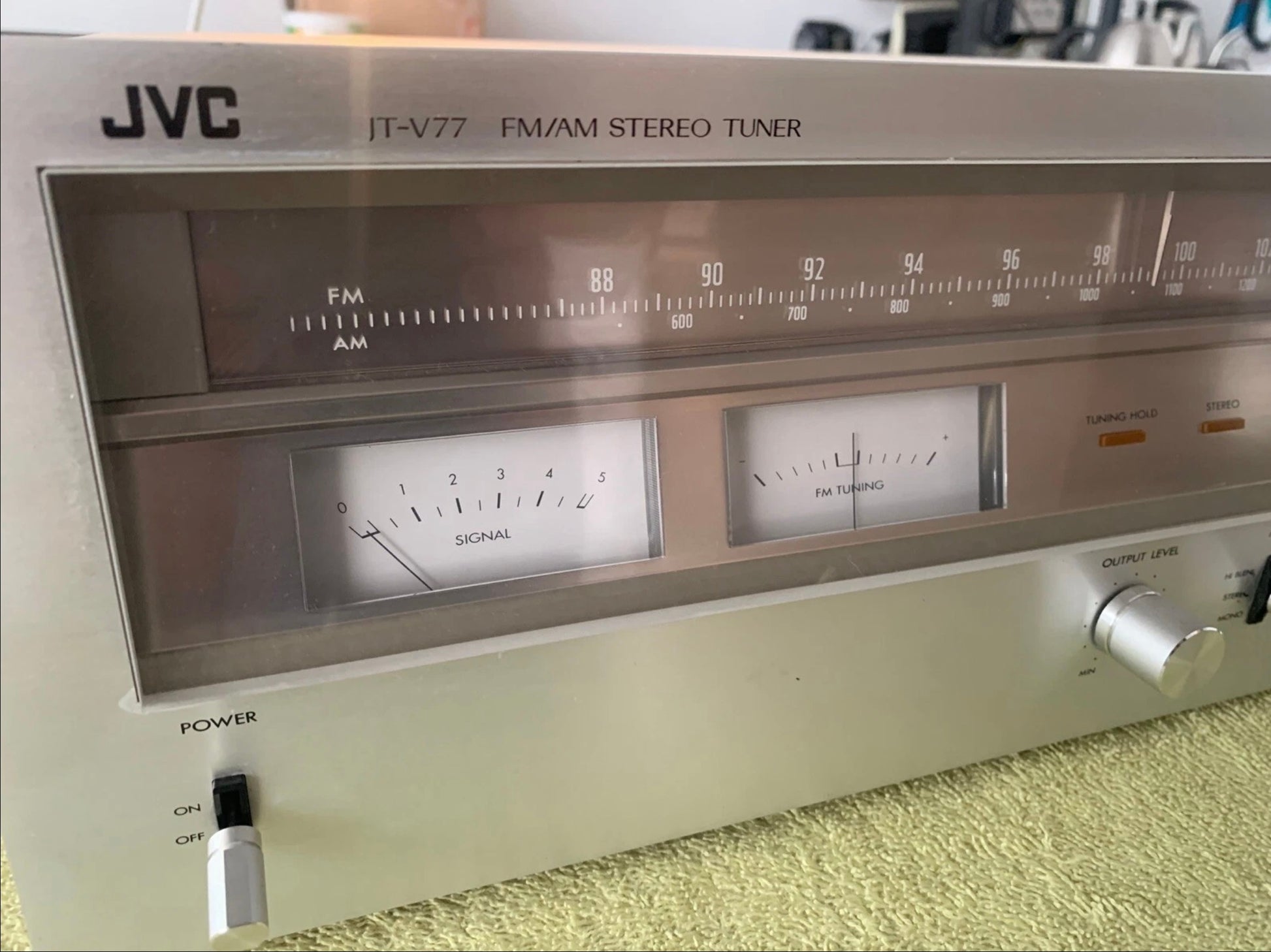

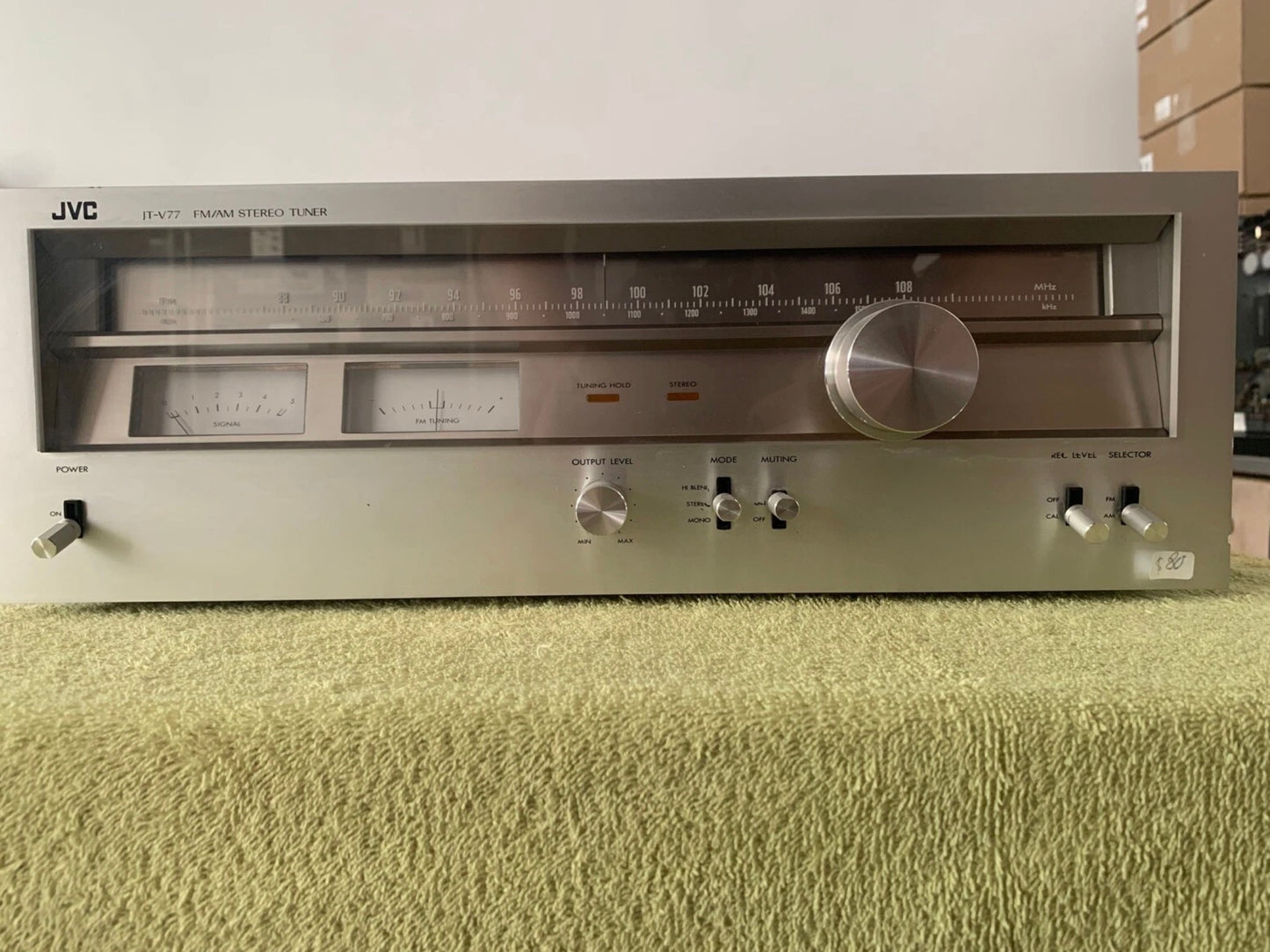

JVC JT-V77 STEREO TUNER

JVC JT-V 77

Specifications:

Manufacturer: JVC
Model: JT-V 77
Type: Tuner
Years of manufacture: 1978 - 1980
Made in: Japan
Color: aluminum front silver
Remote control: no
Power consumption:
Dimensions (WxHxD): 450 x 158 x 342 mm.
Weight: 6.5 kg
Original price approx.: 750 DM

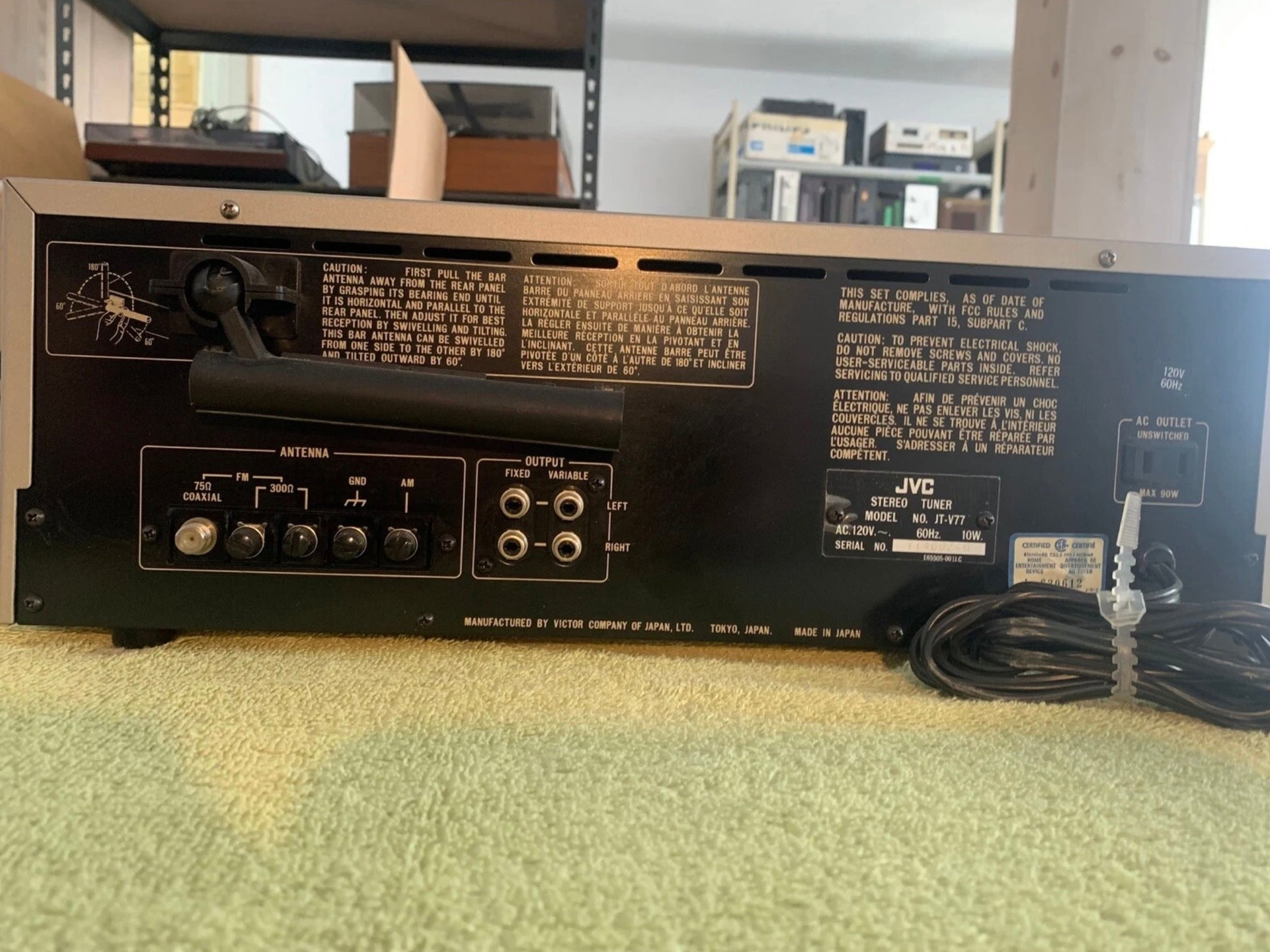

Connections:

Number of inputs:
Antenna: 75 Ohm, 300 Ohm
Number of outputs:
Line Out Fixed: 450 mV
Line Out Variable: 0 - 800 mV

Technical Data

Reception: UKW/MW
Frequencies:
VHF: 88 - 108 MHz
MW: 535 - 1605 KHz
Input sensitivity:
FM: 1.8µV
MW: 50µV
Frequency response: 20 - 15,000 Hz (+ 0.5 dB, - 0.8 dB)
Distortion factor: 0.06% (mono), 0.1% (stereo) Signal-to-noise ratio: 78 dB (mono), 72 dB (stereo)

Channel separation: 50 dB at 1 kHz
Selectivity: 50 dB at 400 kHz
Co-wave selection: 1.0 dB
Spurious wave selection: 75 dB
Image frequency attenuation: 90 dB
IF attenuation: 95 dB
AM suppression: 60 dB
