Audio-Technica Headshell/Cartridge Combo Kit AT-XP5/H

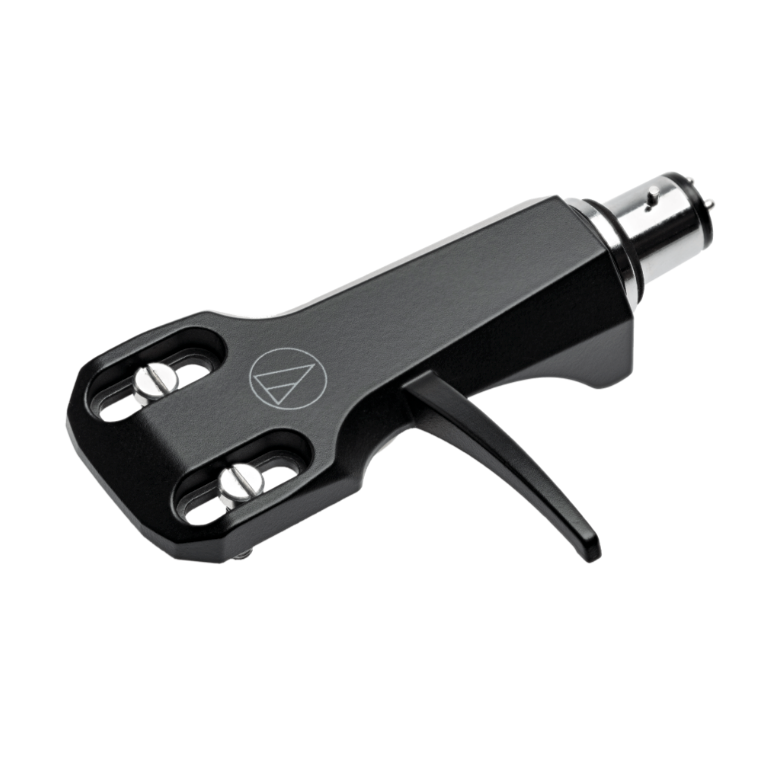

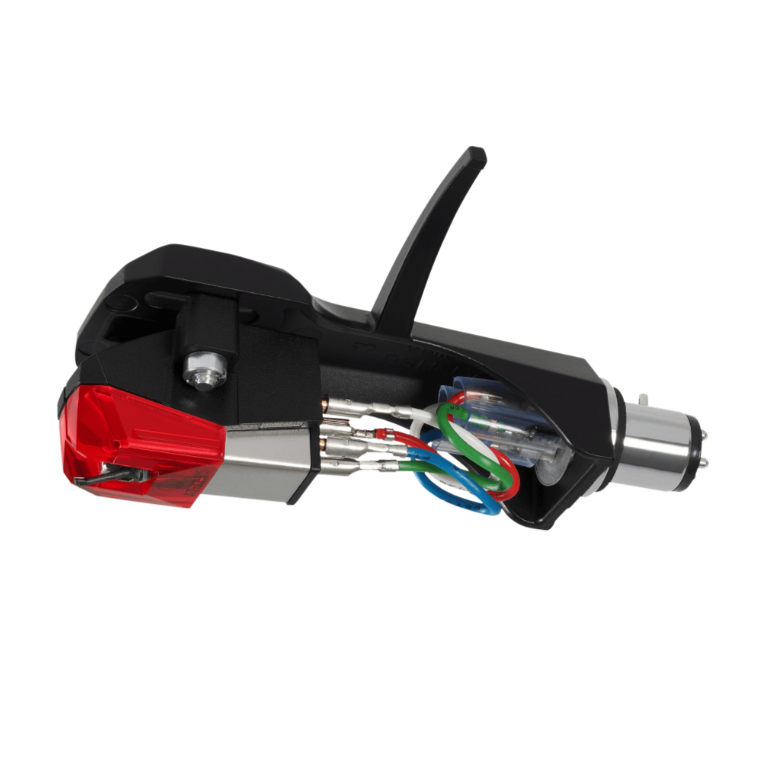

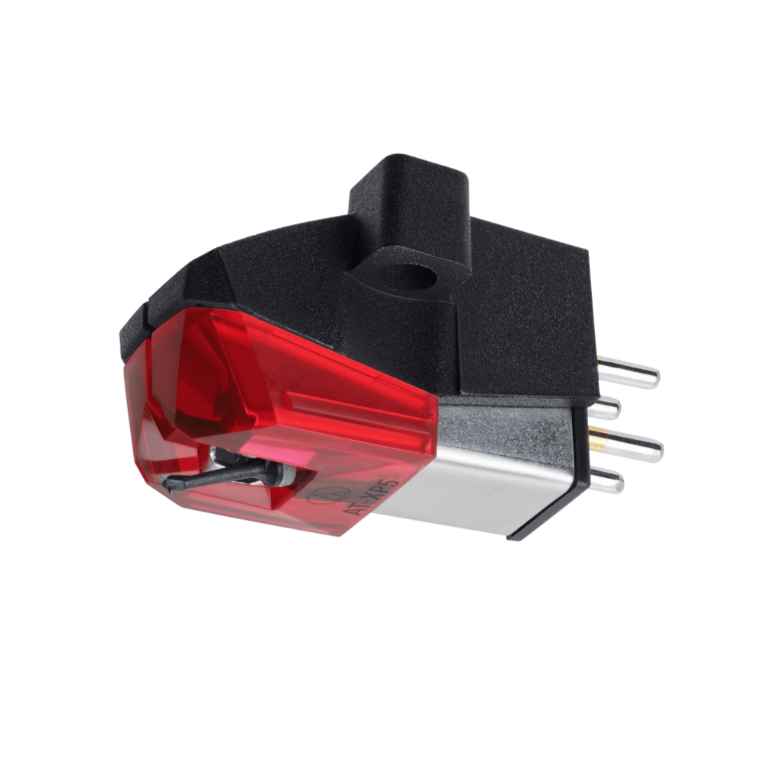

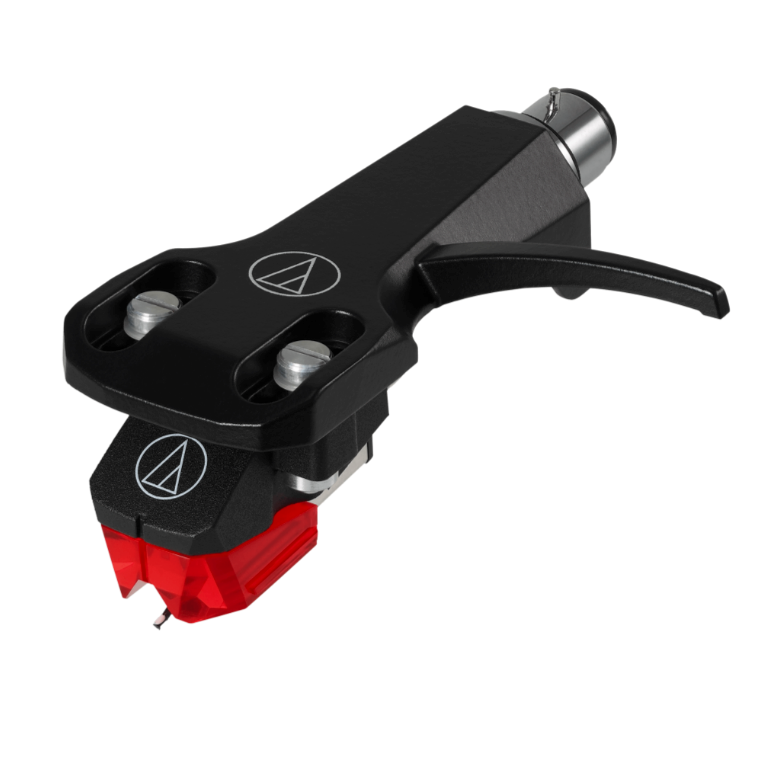

The AT-XP5/H combo kit includes the AT-XP5 DJ cartridge premounted on the AT-HS6BK headshell.

Specifications
Cartridge & Stylus
Frequency Response 20-18,000 Hz
Channel Separation 20 (dB at 1 kHz)
Vertical Tracking Angle 20°
Vertical Tracking Force 2.0-4.0 g (3.0 g standard)
Stylus Construction Bonded round shank
Recommended Load Impedance 47,000 ohms
Coil Impedance 6.7 k ohms (1 kHz)
DC Resistance 990 ohms
Coil Inductance 1.0 H (1 kHz)
Output Voltage 5.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance 2.0 dB (1 kHz)
Stylus Shape 0.3 x 0.7 mil elliptical
Cantilever Carbon fiber-reinforced ABS
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 6.0 x 10 – 6 cm / dyne (100 Hz)
Mounting Half-inch
Cartridge Weight 15.6g
Dimensions cartridge 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D; cartridge and headshell 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D
Accessories Included Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver
Model AT-XP5/H
Mounting Feature Half-inch mount
Recommended Load Capacitance 100 to 200 pF
Replacement Stylus ATN-XP5
Stylus Size 0.3 x 0.7 mil
Weight cartridge 6.2 g (0.22 oz); cartridge and headshell 15.6 g (0.55 oz)
