Audio-Technica Headshell/Cartridge Combo Kit AT-VM95SP/H

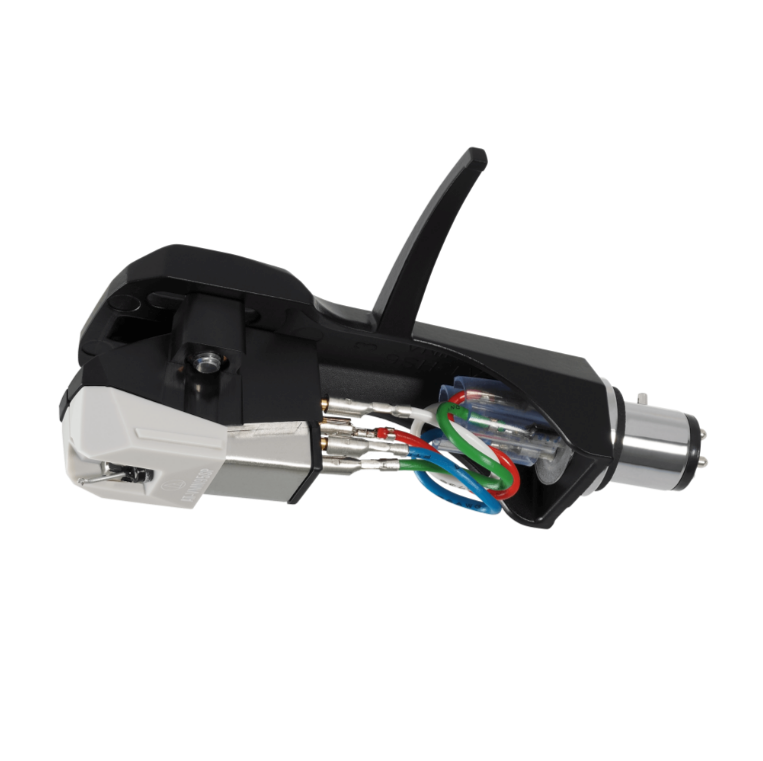

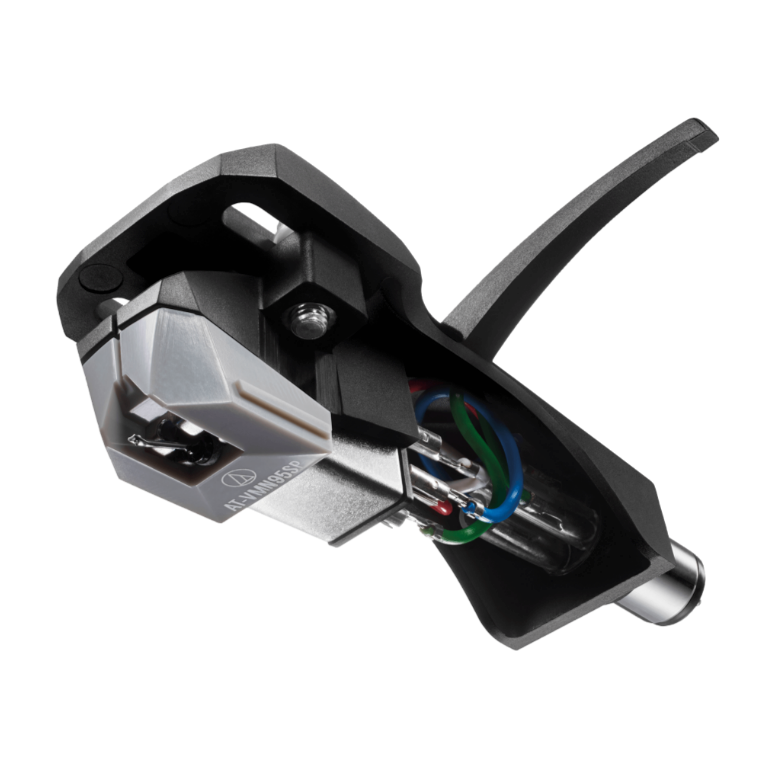

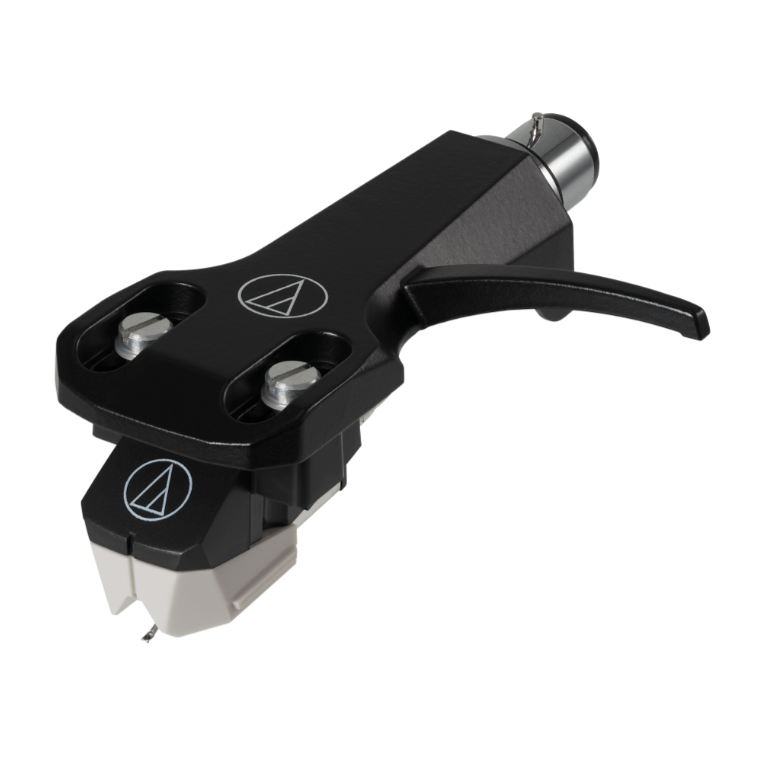

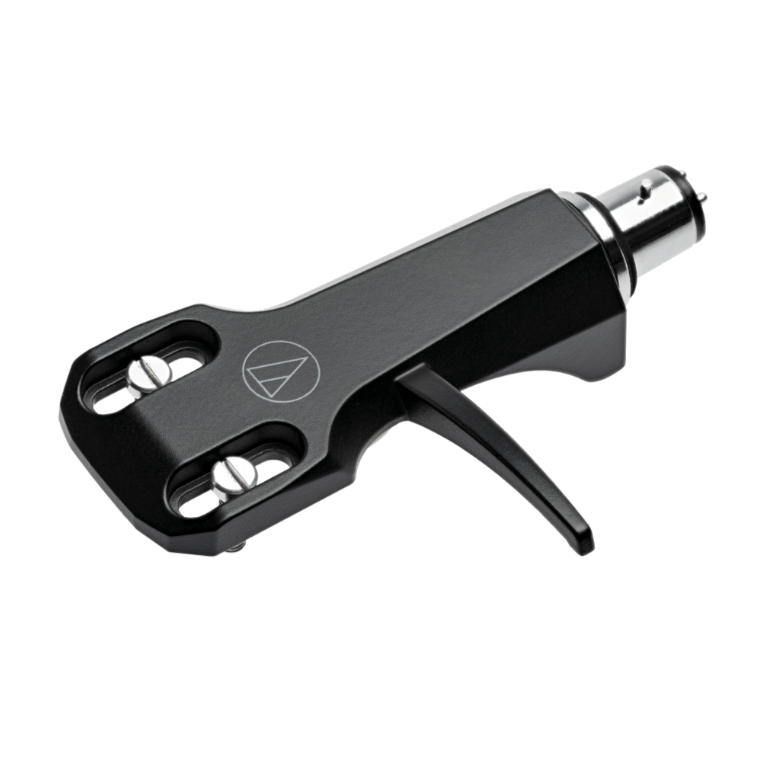

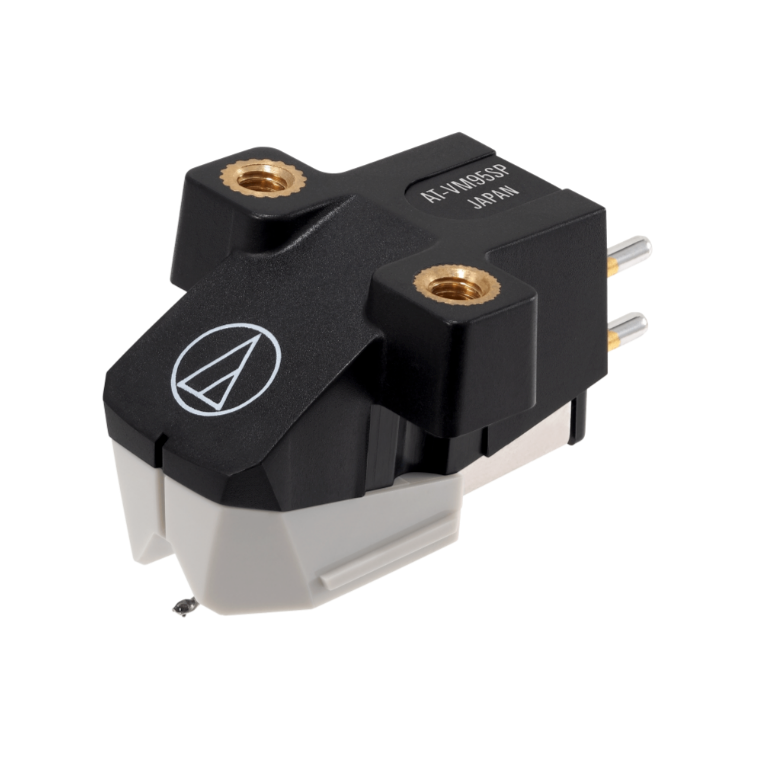

The AT-VM95SP/H combo kit includes the AT-VM95SP dual moving magnet cartridge premounted on the AT-HS6BK headshell.

Specifications
Cartridge & Stylus
Frequency Response 20-20,000 Hz
Channel Separation NA
Vertical Tracking Angle 23°
Vertical Tracking Force 4.5-5.5 g (5.0 g standard)
Stylus Construction Bonded round shank
Recommended Load Impedance 47,000 ohms
Coil Impedance 3.3 k ohms (1 kHz)
DC Resistance 485 ohms
Coil Inductance 550 mH (1 kHz)
Output Voltage 2.7 mV (1 kHz, 5 cm/sec.)
Output Channel Balance 1.5 dB (1 kHz)
Stylus Shape 3.0 mil conical
Cantilever Aluminum pipe
Static Compliance 12 x 10 – 6 cm / dyne
Dynamic Compliance 2 x 10 – 6 cm / dyne (100 Hz)
Mounting Half-inch
Dimensions Cartridge 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D; Cartridge & Headshell 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D
Accessories Included Two 11 mm installation screws, two 8 mm installation screws, two washers
Model AT-VM95SP/H
Mounting Feature Half-inch mount
Recommended Load Capacitance 100 to 200 pF
Replacement Stylus AT-VMN95SP
Stylus Size 3 mil
Type VM Stereo Dual Magnet
Weight Cartridge 6.1 g (0.22 oz); Cartridge & Headshell 15.5 g (0.55 oz)
Wire Used for Coil T.P. Copper
