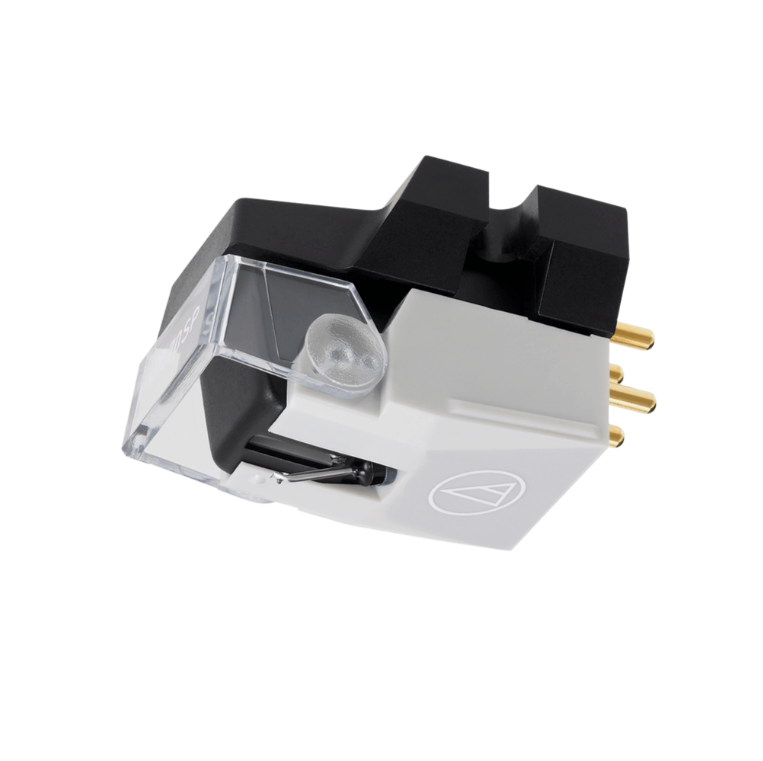

Audio-Technica Dual Moving Magnet Cartridge VM670SP

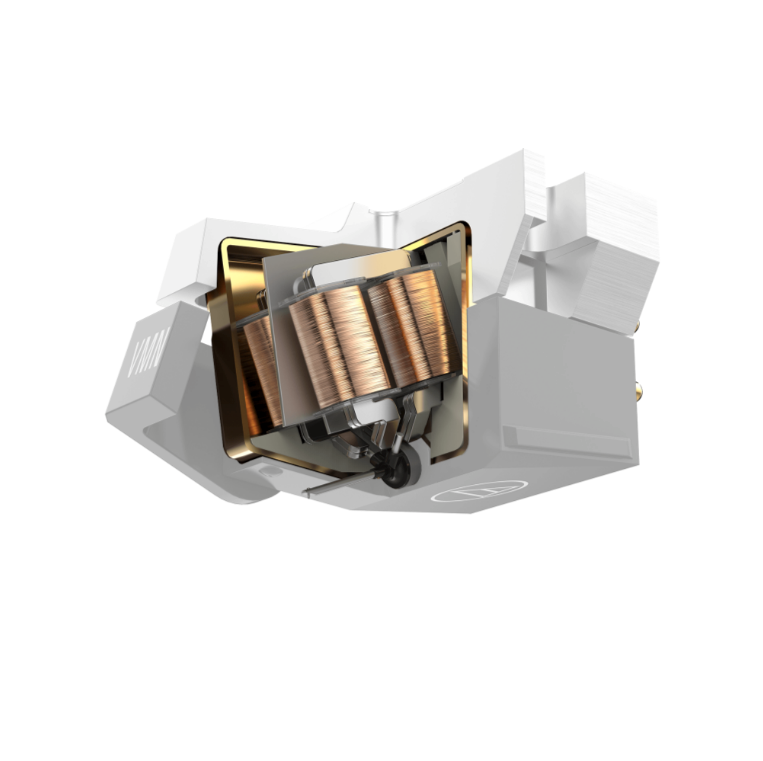

With a specialized body and internal wiring dedicated to monaural sound reproduction, plus a large curvature radius conical stylus, the VM670SP cartridge is designed for playing 78 RPM records. Part of the 600 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges – the VM670SP is equipped with dual magnets that are internally connected to reduce record noise and obtain a highly focused “center” sound image that stereo cartridges can’t provide. The stylus’s 3.0 mil curvature radius makes it an excellent choice for playing 78s from a wide variety of eras. Includes mounting hardware.

Specifications
Cartridge & Stylus
Frequency Response 20-20,000 Hz
Vertical Tracking Angle 23°
Vertical Tracking Force 4.5-5.5 g (5.0 g standard)
Stylus Construction Bonded round shank
Recommended Load Impedance 47,000 ohms
Coil Impedance 1,400 ohms (1 kHz)
DC Resistance 400 ohms
Coil Inductance 230 mH (1 kHz)
Output Voltage 3.0 mV (at 1 kHz, 5 cm/sec)
Stylus Shape 3.0 mil conical
Cantilever Aluminum pipe
Static Compliance 15 x 10-6 cm/dyne
Dynamic Compliance 2 x 10-6 cm/dyne (100 Hz)
Mounting Half-inch
Dimensions 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D

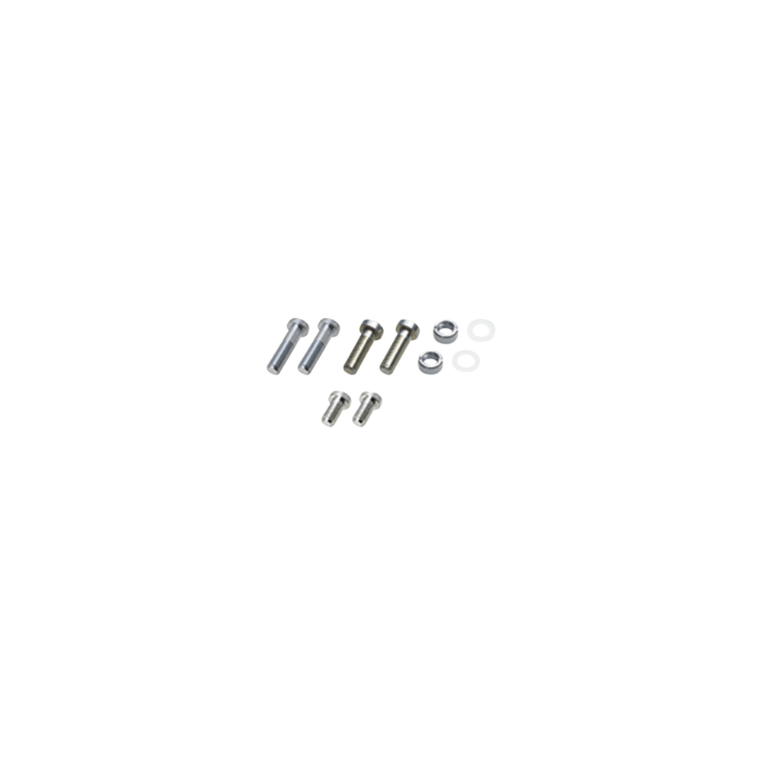

Accessories Included Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts
Mounting Feature Half-inch mount
Recommended Load Capacitance 100-200 pF
Replacement Stylus VMN70SP
Stylus Size 3.0 mil
Type VM Type
Weight 6.4 g (0.2 oz)
