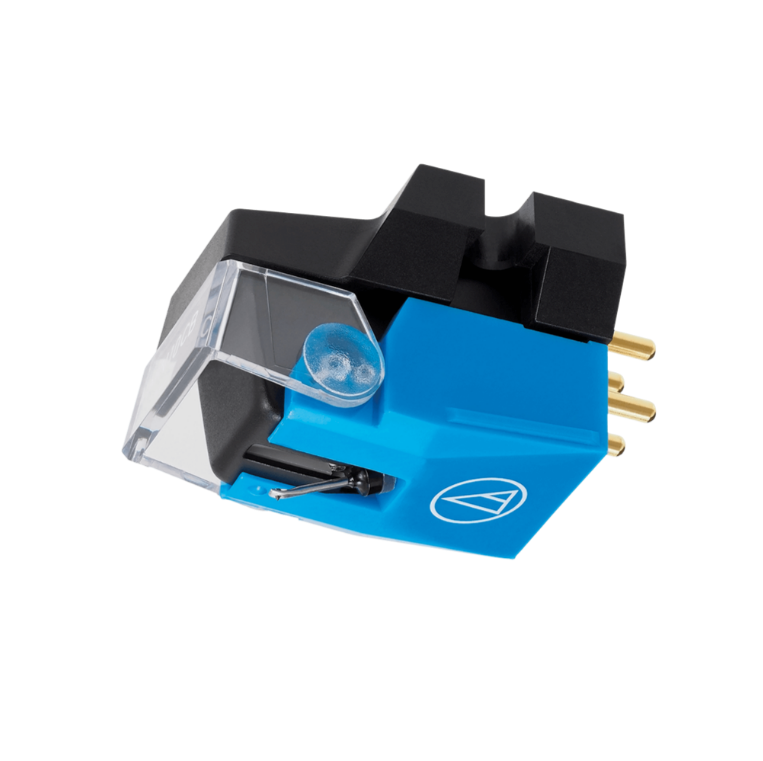

Audio-Technica Dual Moving Magnet Cartridge VM610MONO

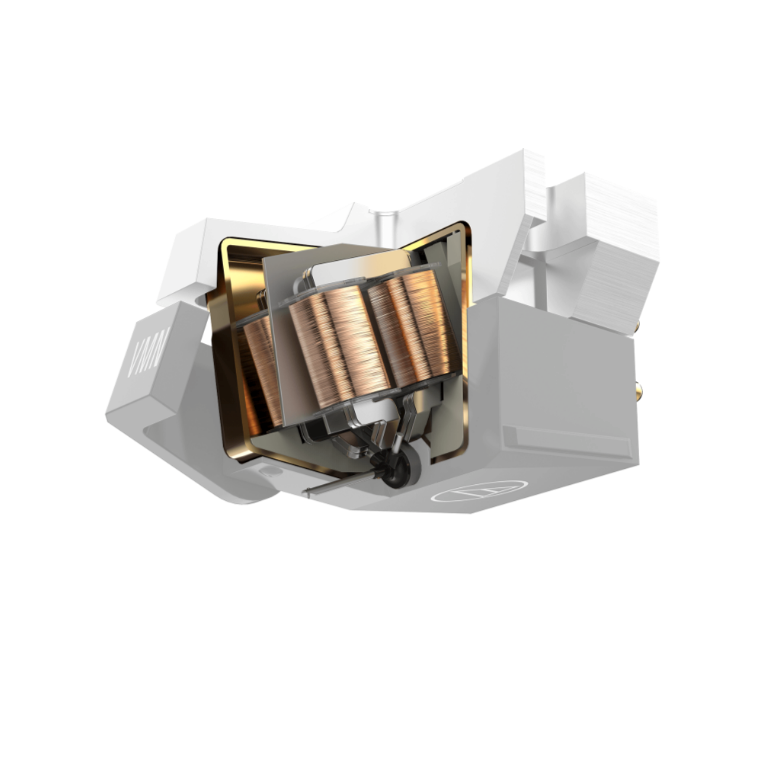

With a specialized body and internal wiring dedicated to monaural sound reproduction, the VM610MONO conical stylus cartridge is designed for playing mono records. Part of the 600 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges – the VM610MONO is equipped with dual magnets that are internally connected to reduce record noise and obtain a highly focused “center” sound image that stereo cartridges can’t provide. Includes mounting hardware.

Specifications
Cartridge & Stylus
Frequency Response 20-20,000 Hz
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8-2.2 g (2.0 g standard)
Stylus Construction Bonded round shank
Recommended Load Impedance 47,000 ohms
Coil Impedance 1,400 ohms (1 kHz)
DC Resistance 400 ohms
Coil Inductance 230 mH (1 kHz)
Output Voltage 3.0 mV (at 1 kHz, 5 cm/sec)
Stylus Shape 0.6 mil conical
Cantilever Aluminum pipe
Static Compliance 35 x 10-6 cm/dyne
Dynamic Compliance 8 x 10-6 cm/dyne (100 Hz)
Mounting Half-inch
Dimensions 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D

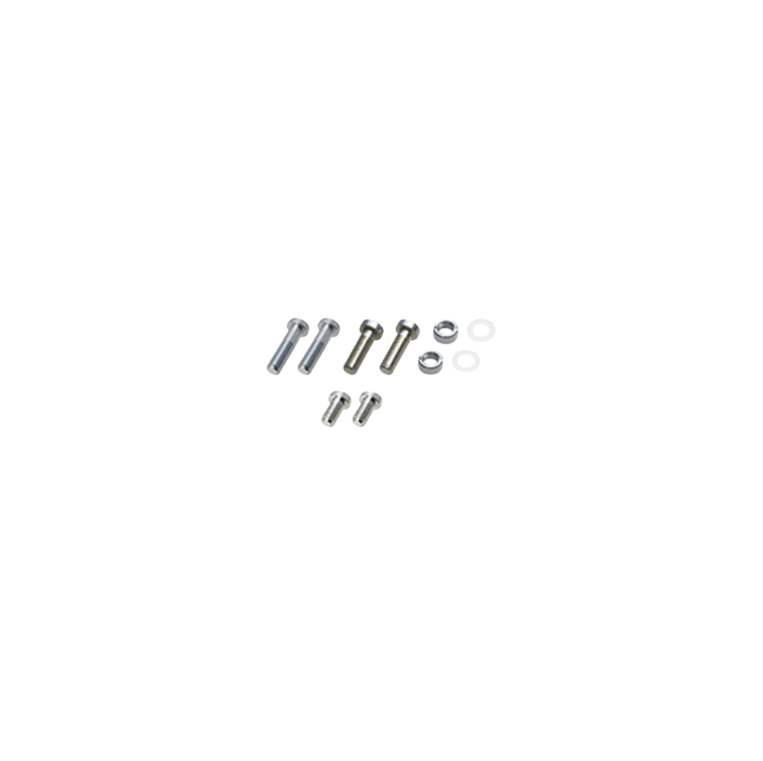

Accessories Included Six cartridge installations screws (5mm x 2, 8mm x 2 and 10mm x 2), two washers, two round nuts
Mounting Feature Half-inch mount
Recommended Load Capacitance 100-200 pF
Replacement Stylus VMN10CB
Stylus Size 0.6 mil
Type VM Type
Weight 6.4 g (0.2 oz)
