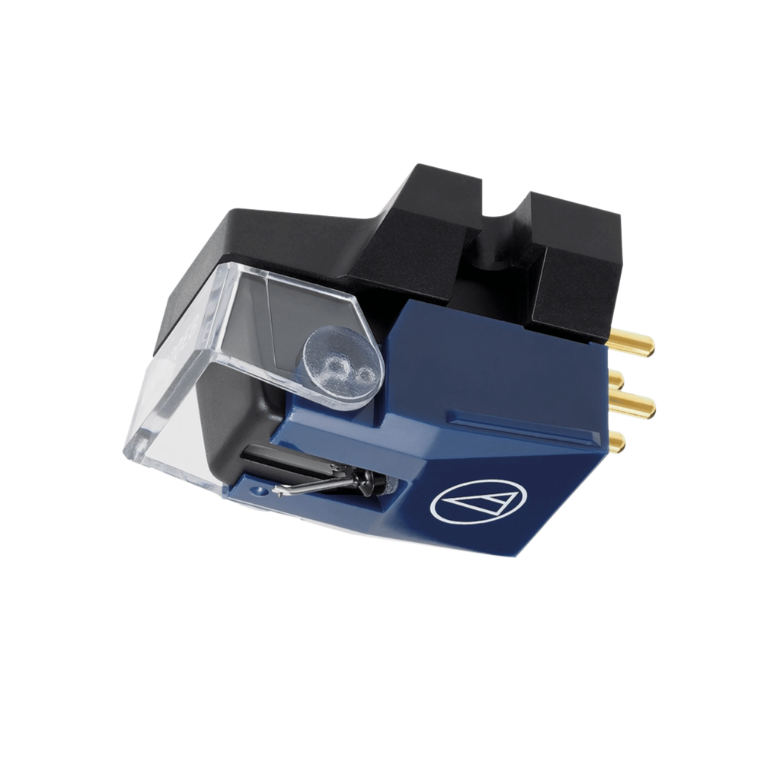

Audio-Technica Dual Moving Magnet Cartridge VM520EB

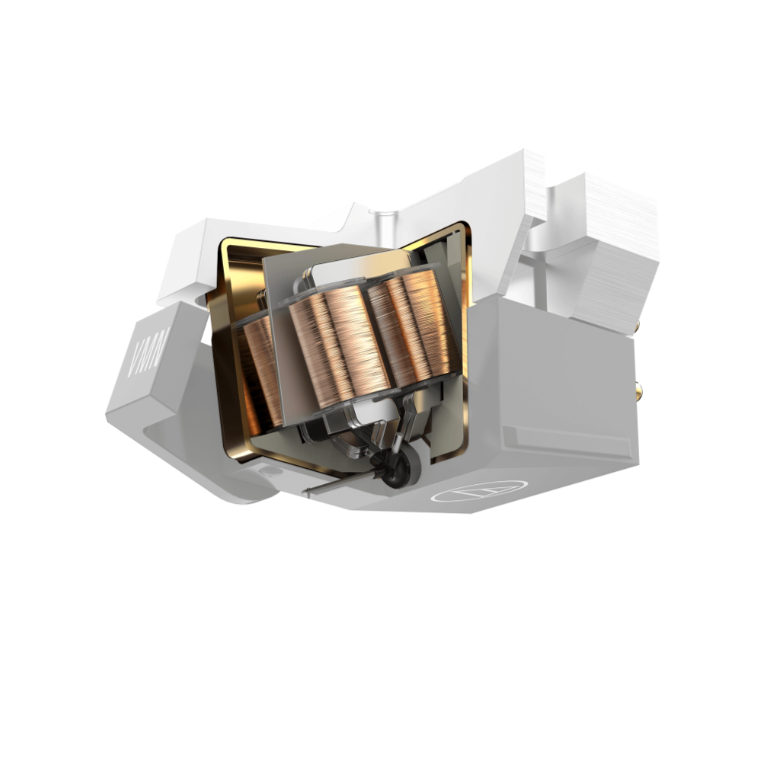

The VM520EB is part of the 500 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM520EB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Includes mounting hardware.

Output Voltage 4.5 mV (at 1 kHz, 5 cm/sec)
Output Channel Balance 1.5 dB (1 kHz)
Stylus Shape 0.3 x 0.7 mil elliptical
Cantilever Aluminum pipe
Static Compliance 35 x 10-6 cm/dyne
Dynamic Compliance 8 x 10-6 cm/dyne (100 Hz)
Mounting Half-inch
Dimensions 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D

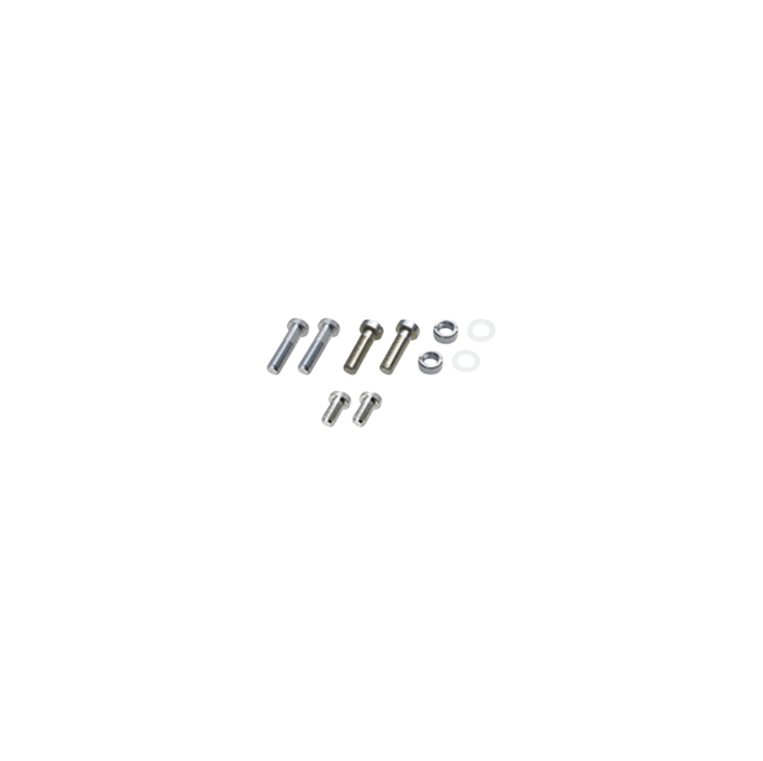

Accessories Included Six cartridge installations screws (5mm x 2, 8mm x 2 and 10mm x 2), two washers, two round nuts
Mounting Feature Half-inch mount
Recommended Load Capacitance 100-200 pF
Replacement Stylus VMN20EB
Stylus Size 0.3 x 0.7 mil
Type VM Type
Weight 6.4 g (0.2 oz)
