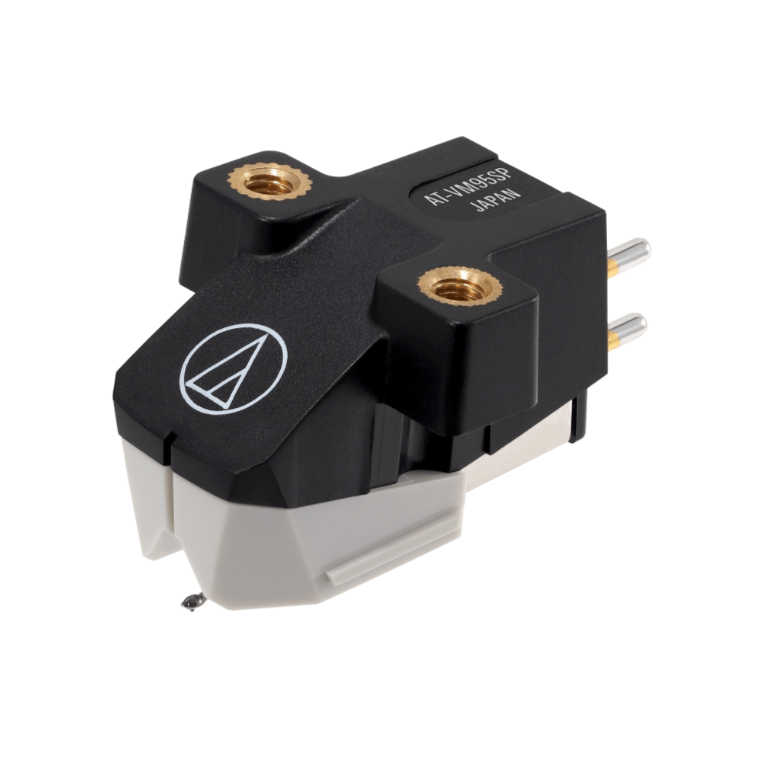

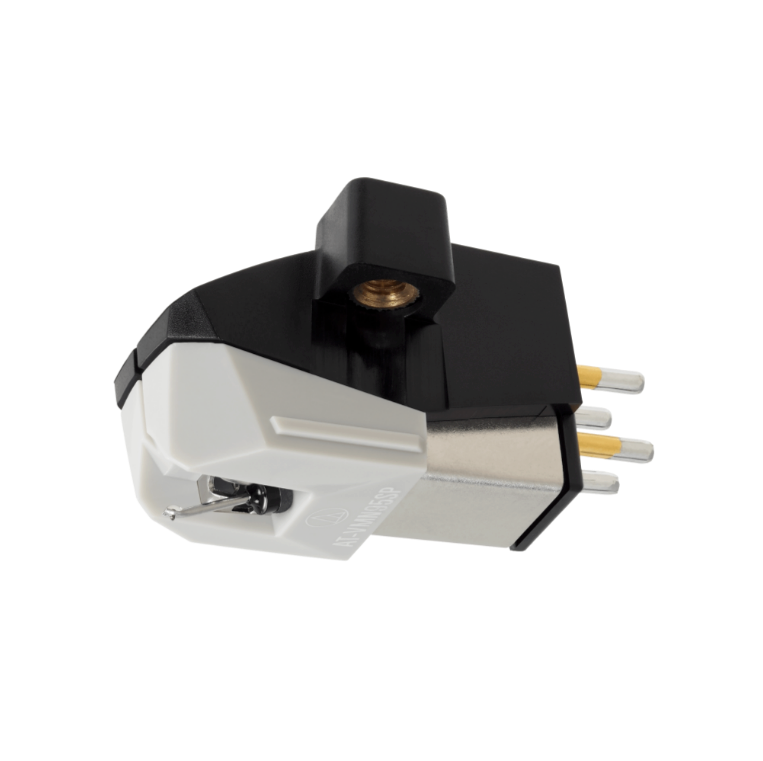

Audio-Technica Dual Moving Magnet Cartridge AT-VM95SP

This VM95 Series cartridge with 3.0 mil conical stylus fits half-inch mount turntables. While this cartridge is designed to play 78 RPM mono records, it is, nevertheless, a stereo cartridge, allowing users to choose between the left and right channels, which can be especially helpful in archiving applications to minimize noise and distortion. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Specifications
Cartridge & Stylus
Frequency Response 20-20,000 Hz
Channel Separation NA
Vertical Tracking Angle 23°
Vertical Tracking Force 4.5-5.5 g (5.0 g standard)
Stylus Construction Bonded round shank
Recommended Load Impedance 47,000 ohms
Coil Impedance 3.3 k ohms (1 kHz)
DC Resistance 485 ohms
Coil Inductance 550 mH (1 kHz)
Output Voltage 2.7 mV (1 kHz, 5 cm/sec.)
Output Channel Balance 1.5 dB (1 kHz)
Stylus Shape 3.0 mil conical
Cantilever Aluminum pipe
Static Compliance 12 x 10-6 cm/dyne
Dynamic Compliance 2 x 10-6 cm/dyne (100 Hz)
Mounting Half-inch
Cartridge Weight 6.1g
Dimensions 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D

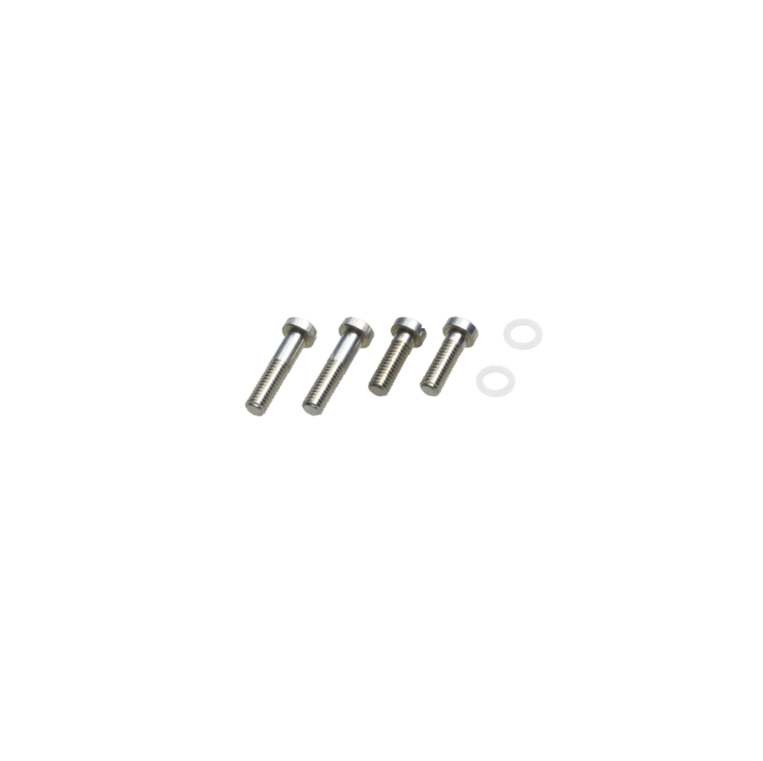

Accessories Included Two 11 mm installation screws, two 8 mm installation screws, two washers
Model AT-VM95SP
Mounting Feature Half-inch mount
Recommended Load Capacitance 100 to 200 pF
Replacement Stylus AT-VMN95SP
Stylus Size 3 mil
Type VM Stereo Dual Magnet
Weight 6.1 g (0.22 oz)
Wire Used for Coil T.P. Copper
