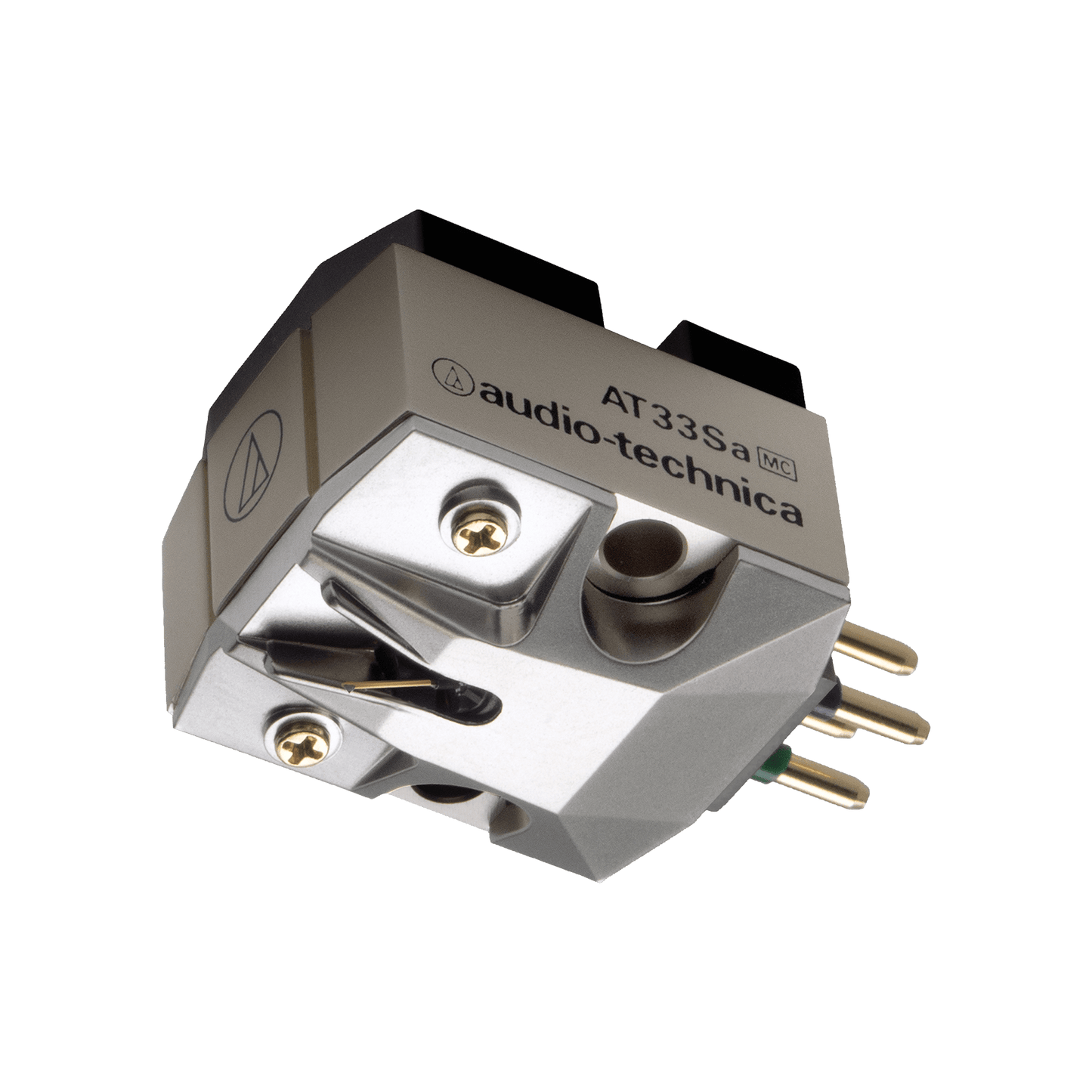

Audio-Technica Dual Moving Coil Cartridge AT33Sa

The AT33Sa is the first Audio-Technica moving coil cartridge to feature a Shibata line-contact stylus, known for its superior high-range performance and strong mid and bass sound. The stylus is mounted on a tapered boron cantilever with a double damper for reduced weight and better audio quality. The cartridge’s dual moving coils provide excellent channel separation and are affixed within a strong but lightweight VC mold to greatly reduce unwanted vibration. The cartridge uses a neodymium magnet and a permendur yoke for dramatically enhanced magnetic energy. The PCOCC (Pure Copper by Ohno Continuous Casting) coils ensure pure audio transmission.

Specifications
Cartridge & Stylus
Frequency Response 15-50,000 Hz
Channel Separation 30 dB (1 kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8-2.2 g (2.0 g standard)
Stylus Construction Nude square shank
Recommended Load Impedance More than 100 ohms (when head amplifier is connected)
Coil Impedance 10Ω (1kHz)
DC Resistance 10Ω
Coil Inductance 22 µm (1kHz)
Output Voltage 0.4 mV (at 1 kHz, 5 cm/sec)
Output Channel Balance 0.5 dB (1 kHz)
Stylus Shape Shibata (line contact)
Cantilever Solid, tapered boron
Static Compliance 40×10-6cm/dyne
Dynamic Compliance 10×10-6cm/dyne (100Hz)
Mounting Half-inch
Dimensions H16×W16.6×D26.5mm
Accessories Included 1 non magnetic screw driver; 1 brush; 2 washers; 2 Nuts; 2 x 19 mm mounting screws; 1 plastic protector; 1 set of PCOCC Lead Wires (AT6101)
Body Material Aluminium/Synthetic Resin
Mounting Feature Half-inch mount
Stylus Curvature Radius Shibata
Type Dual Moving Coil
Weight 6.9g
Notes Note: Moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
