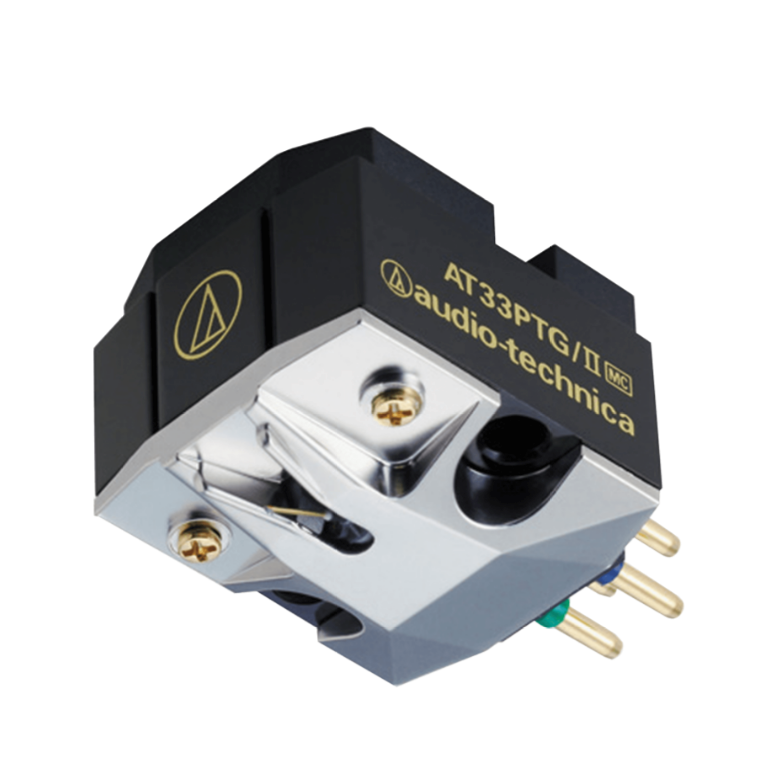

Audio-Technica Dual Moving Coil Cartridge AT33PTG/2

The AT33PTG/II dual moving coil cartridge features a Microlinear stylus that, with its small curvature radius, delivers low-distortion, high-range performance, even when playing the inner circumference of a record. The Microlinear stylus, which has an average life span of around 1,000 hours, is mounted on a nude tapered boron cantilever with a double damper for reduced weight and better audio quality.

The cartridge’s two coils provide excellent channel separation and are affixed within a strong, lightweight mold made of hard resin to greatly reduce unwanted vibration. The cartridge uses a neodymium magnet and a permendur yoke for dramatically enhanced magnetic energy. The PCOCC (Pure Copper by Ohno Continuous Casting) coils ensure pure audio transmission.

Specifications
Cartridge & Stylus
Frequency Response 15-50,000 Hz
Channel Separation 30 dB (1 kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8-2.2 g (2.0 g standard)
Recommended Load Impedance More than 100 ohms (when head amplifier is connected)
Coil Impedance 10 ohms (1 kHz)
DC Resistance 10 ohms
Coil Inductance 22 µH (1 kHz)
Output Voltage 0.3 mV (at 1 kHz, 5 cm/sec)
Output Channel Balance 0.5 dB (1 kHz)
Stylus Shape Microlinear
Cantilever Gold-plated nude tapered boron
Static Compliance 40 x 10-6 cm/dyne
Dynamic Compliance 10 x 10-6 cm/dyne (100 Hz)
Mounting Half-inch
Dimensions 16.0 mm (0.63") H × 16.6 mm (0.65") W × 26.5 mm (1.04") D
Accessories Included Non-magnetic screwdriver; 2 washers; 2 nuts; cartridge installation screws (13 mm × 2, 19 mm × 2); plastic protector; brush; PCOCC lead wire set
Mounting Feature Half-inch mount
Stylus Curvature Radius 2.2 x 0.12 mil
Stylus Size Nude square shank
Weight 6.9 g (0.24 oz)
Notes Note: Moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
