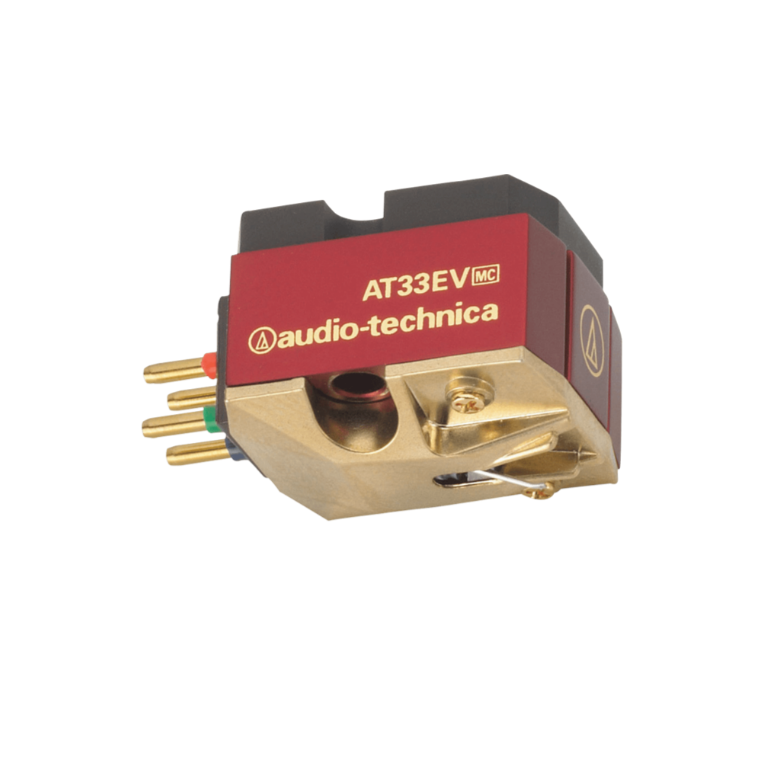

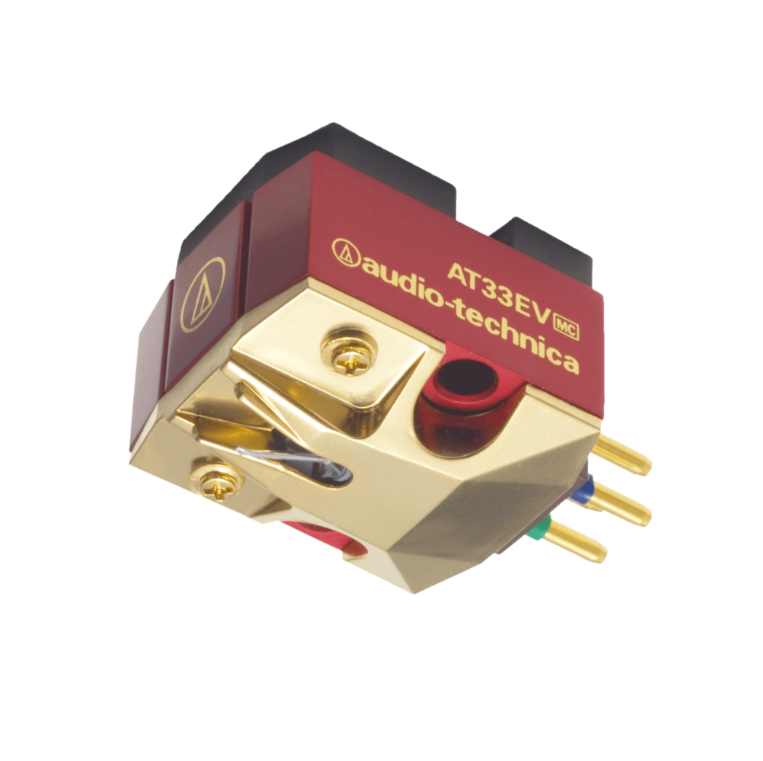

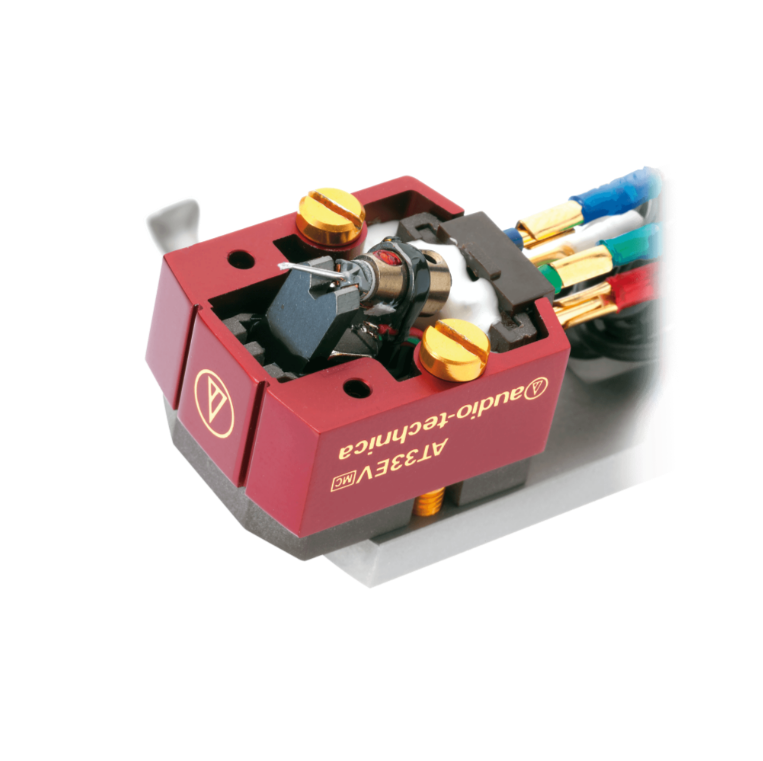

Audio-Technica Dual Moving Coil Cartridge AT33EV

The new half-inch standard mount .3 x .7 mil elliptical AT33EV cartridge features a tapered duralumin cantilever. Dual Moving Coil cartridge design increases channel separation and extends the frequency response range delivering extraordinary audio quality. Internally constructed with neodymium magnet for enhanced magnetic energy and PCOCC wire for pure audio transmission.

Specifications
Cartridge & Stylus
Frequency Response 15-50,000 Hz
Channel Separation 30 dB (1 kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8-2.2 grams (2.0 grams standard)
Stylus Construction Nude Square Shank
Recommended Load Impedance 100 ohms (with head amplifier connected)
Coil Impedance 10Ω (1kHz)
DC Resistance 10Ω
Coil Inductance 22µH (1kHz)
Output Voltage 0.3 (mV at 1 kHz, 3.54 cm/sec)
Output Channel Balance 0.5 dB (1 kHz)
Stylus Shape 0.3 x 0.7 mil nude elliptical
Cantilever Duralumin tapered pipe
Static Compliance 40×10-6cm/dyne
Dynamic Compliance 10×10-6cm/dyne (100Hz)
Mounting Half-inch
Dimensions H16×W16.6×D26.5mm
Accessories Included Non-magnetic screwdriver × 1, Washer × 2, Protector × 1, Cartridge installation screws 13 mm × 2 and 19 mm × 2, Nut × 2, Brush × 1, PCOCC lead set × 1
Body Material Aluminium/Synthetic Resin
Mounting Feature Half-inch mount
Stylus Curvature Radius 0.3 x 0.7 mil
Terminal Pins Brass
Type Dual Moving Coil
Weight 6.9g
