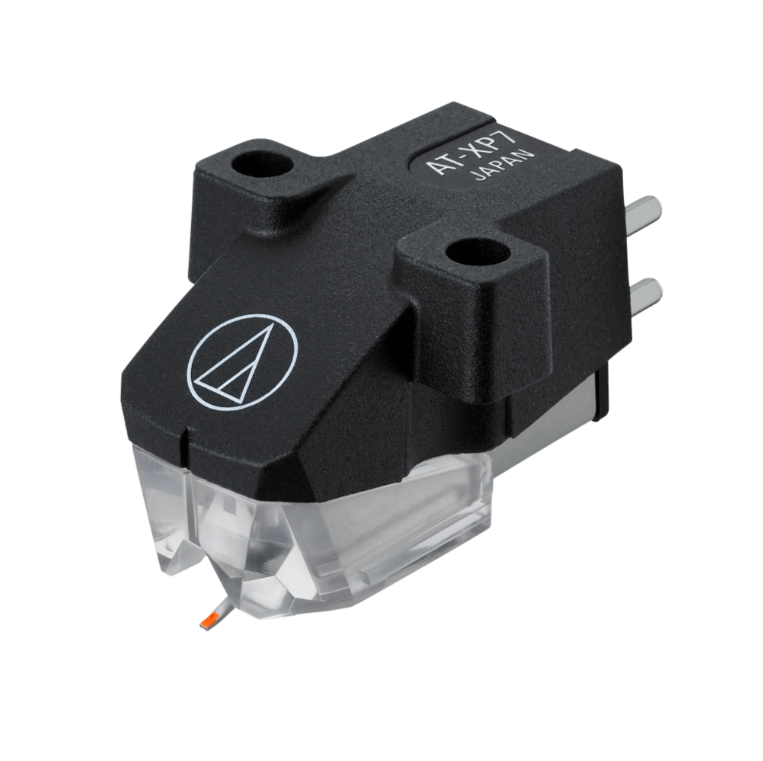

Audio-Technica DJ Cartridge AT-XP7

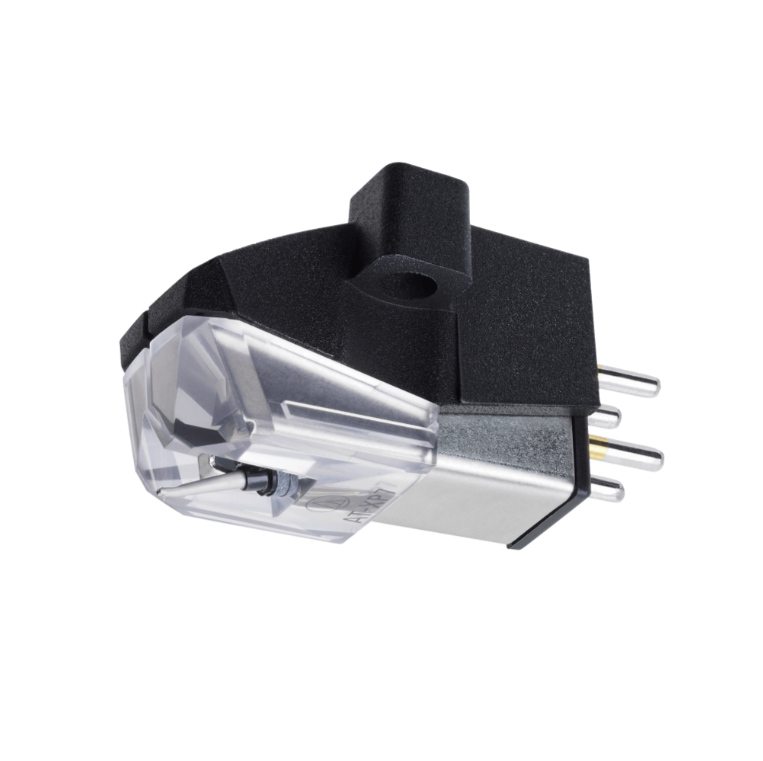

The AT-XP7 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 6.0 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.

Specifications
Cartridge & Stylus
Frequency Response 20-20,000 Hz
Channel Separation 22 (dB at 1 kHz)
Vertical Tracking Angle 20°
Vertical Tracking Force 2.0-4.0 g (3.0 g standard)
Stylus Construction Bonded round shank
Recommended Load Impedance 47,000 ohms
Coil Impedance 6.7 k ohms (1 kHz)
DC Resistance 990 ohms
Coil Inductance 1.0 H (1 kHz)
Output Voltage 6.0 mV (1 kHz, 5 cm/sec.)
Output Channel Balance 2.0 dB (1 kHz)
Stylus Shape 0.3 x 0.7 mil elliptical
Cantilever Aluminum tapered pipe
Static Compliance 20 x 10-6 cm/dyne
Dynamic Compliance 8.0x10-6cm/dyne (100Hz)
Mounting Half-inch
Dimensions 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D

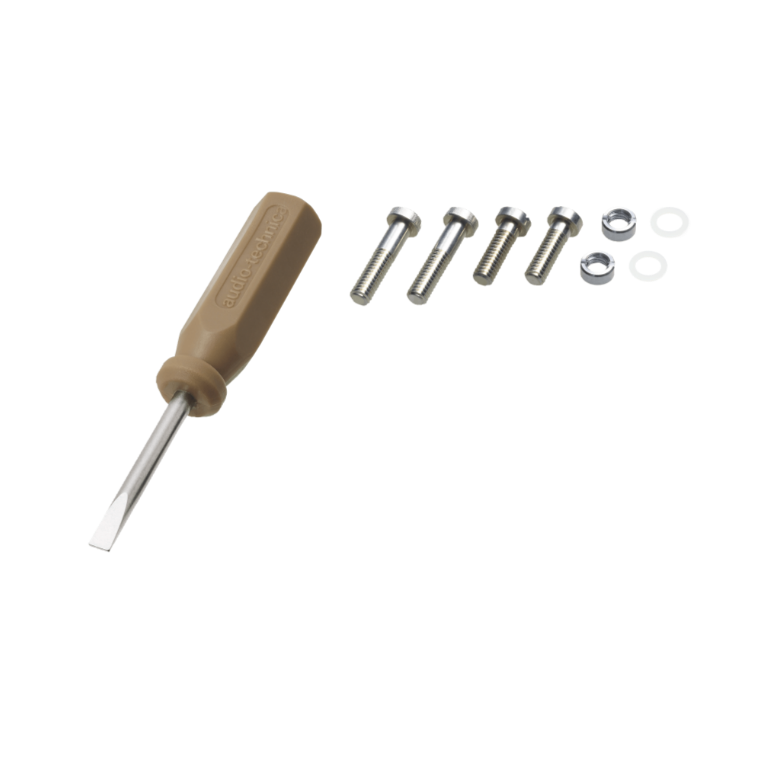

Accessories Included Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2,
Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1
Mounting Feature Half-inch mount
Recommended Load Capacitance 100 to 200 pF
Replacement Stylus ATN-XP7
Stylus Size 0.3 x 0.7 mil
Type VM Dual Magnet
Weight 6.2 g (0.22 oz)
