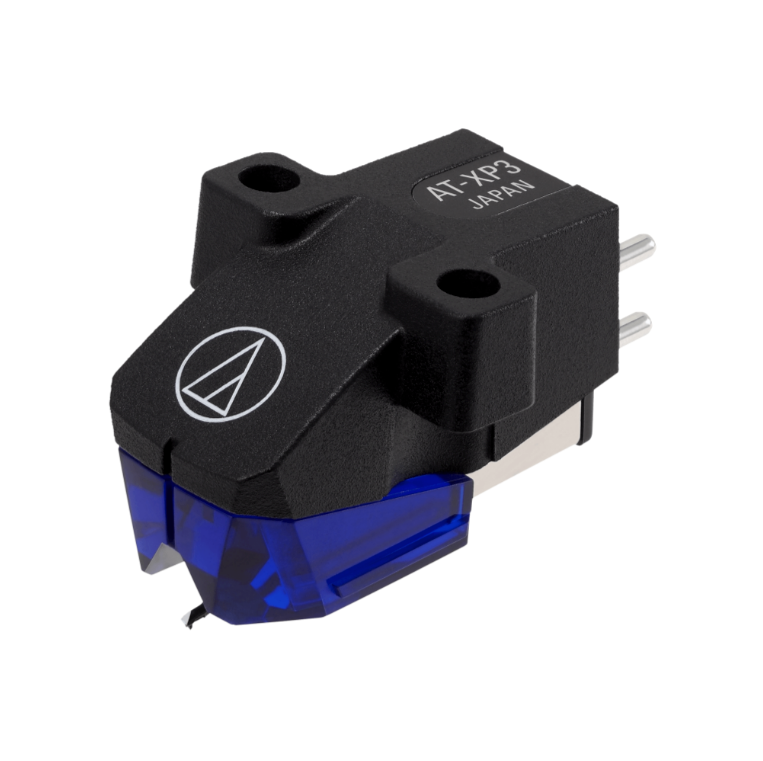

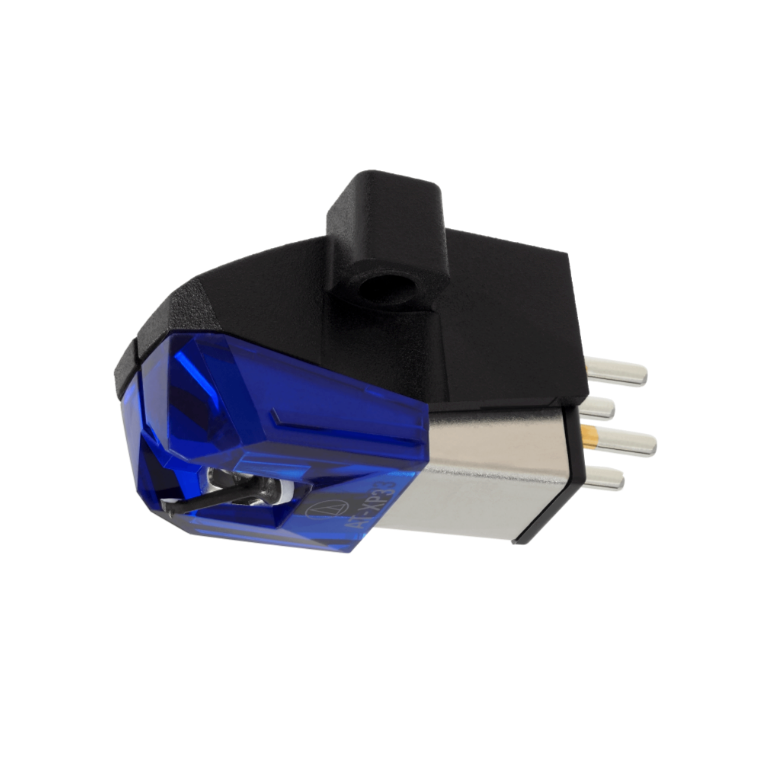

Audio-Technica DJ Cartridge AT-XP3

The AT-XP3 cartridge is specially designed for DJs. It features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body, has a tracking force of 2 to 4 grams, and offers a powerful output level of 5.5 mV. Its 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. And the cartridge design provides maximum visibility of the stylus tip. The AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

Specifications
Cartridge & Stylus
Frequency Response 20-18,000 Hz
Channel Separation 20 (dB at 1 kHz)
Vertical Tracking Angle 20°
Vertical Tracking Force 2.0-4.0 g (3.0 g standard)
Stylus Construction Bonded round shank
Recommended Load Impedance 47,000 ohms
Coil Impedance 6.7 k ohms (1 kHz)
Coil Inductance 550 mH (1 kHz)
Output Voltage 5.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance 2.0 dB (1 kHz)
Stylus Shape 0.6 mil conical
Cantilever Carbon fiber-reinforced ABS
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 6.0 x 10 – 6 cm / dyne (100 Hz)
Mounting Half-inch
Cartridge Weight 6.2g
Dimensions 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D

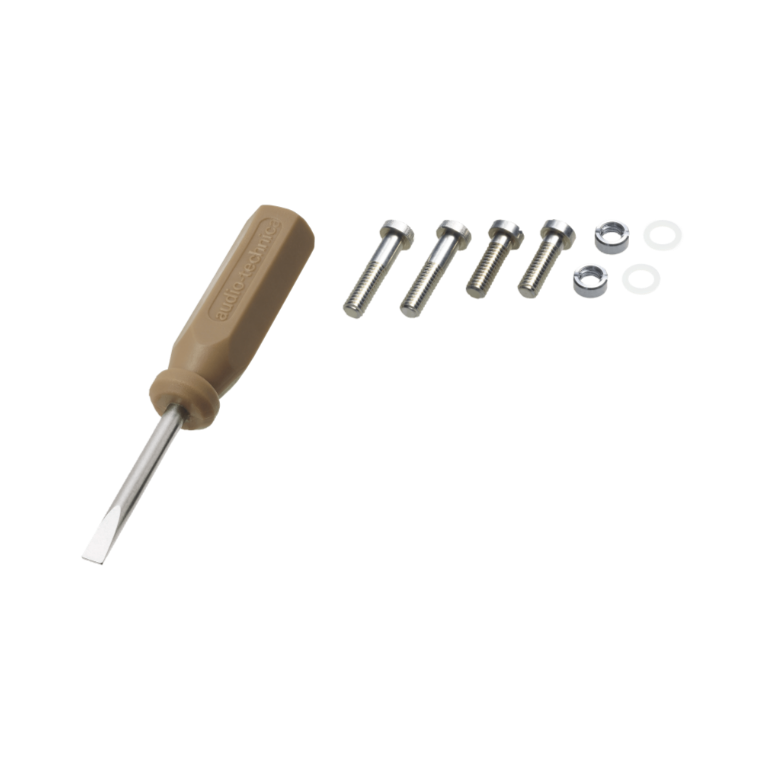

Accessories Included Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver
Model AT-XP3
Mounting Feature Half-inch mount
Recommended Load Capacitance 100 to 200 pF
Replacement Stylus ATN-XP3
Stylus Size 0.6 mil
Weight 6.2 g (0.22 oz)
